PH-10P China Abs Electrical Enclosure Cable Waterproof Junction Box 55x91x43mm Ip65 Plastic Control Box Construction or Electric Pvc

Technical Parameters

Name
China Abs Electrical Enclosure Cable Waterproof Junction Box 55x91x43mm Ip65 Plastic Control Box Construction or Electric Pvc
Protection degree
IP66
Operating temperature
80
Product material
ABS,PC,PBT
Working temperature
80
Colors
grey

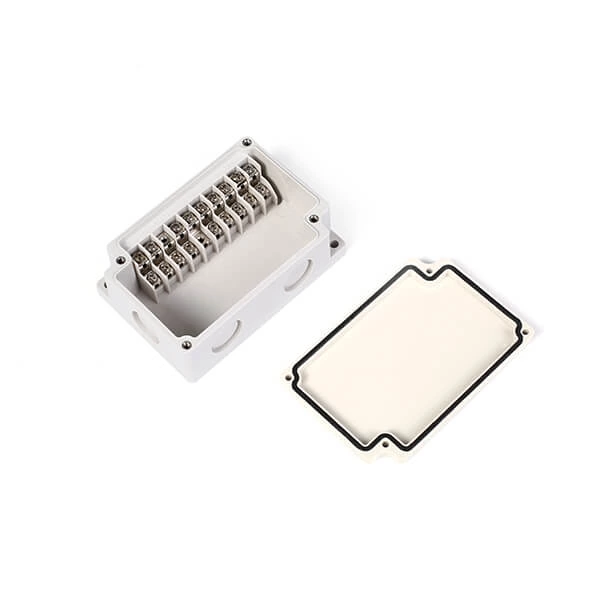

Product Name :Terminal Block Box junction box

Model :PH

Material : ABS,PC

Colour : Light Gray or Customize

Application : Electrical or industrial

Processing : Plastic Injection

Customization : Cutout holes, silkscreen print etc

Drawing Format :PDF, CAD, STP, Jpg etc

Function : Water-proof, Dust-proof, Fire-proof, Ultraviolet-proof

Protection Level:Ip66

The terminal block junction box is a device in electrical systems that uses its enclosure to protect internal terminals, enabling wire connection, tapping or merging, with functions of moisture and dust protection, and facilitating maintenance.

Size
(widthxlengthxdepth
mm)
Product model
Cover:Grey ABS
Body:Grey ABS
Product model
Cover:Grey PC
Body:Grey PC
Product model
Cover:Tranparent PC
Body:Grey PC
Product model
Cover:Tranparent PC
Body:Grey ABS
50*102*40 PH--AG-4P PH--PG-4P PH--PT-4P PH--AT-4P
55*91*43 PH-AG-4P-M PH-PG-4P-M PH-PT-4P-M PH-AT-4P-M
55*125*40 PH-AG-6P PH-PG-6P PH-PT-6P PH-AT-6P

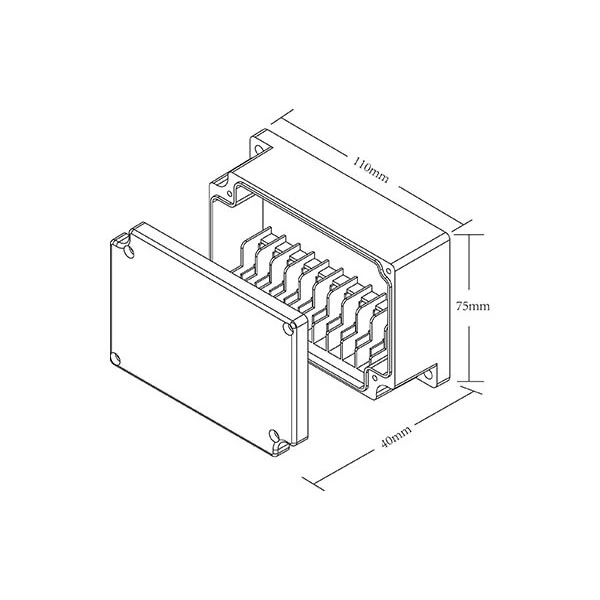

75*110*40 PH-AG-10P PH-PG-10P PH-PT-10P PH-AT-10P
100*180*55 PH-AG-15P PH-PG-15P PH-PT-15P PH-AT-15P
100*180*75 PH-AG-15P-S PH-PG-15P-S PH-PT-15P-S PH-AT-15P-S
100*223*75 PH-AG-20P-S PH-PG-20P-S PH-PT-20P-S PH-AT-20P-S

















Installation Guide

Theterminal box has excellent insulation.chemical corrosion resistance and mechantcal extrusion resistance. Achieve a high required IP66
strengthn ABS, PCa, P ITa refractory and UV additive materials. The appearance is beautiful and generous, with a high degree of plasticity and
-1, 5 mmsq.terminal specification with 3P-60P variety to meet your choice.

Certification RoHS;UL(Materia);SGS;CE;IP68 Function Impact resistance,Heat resistance,Cold resistance,Chemical resistance, Excellent electrical performance smooth surface etc...... Feature Sealing rin

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,
