For different system, you can choose different voltage.

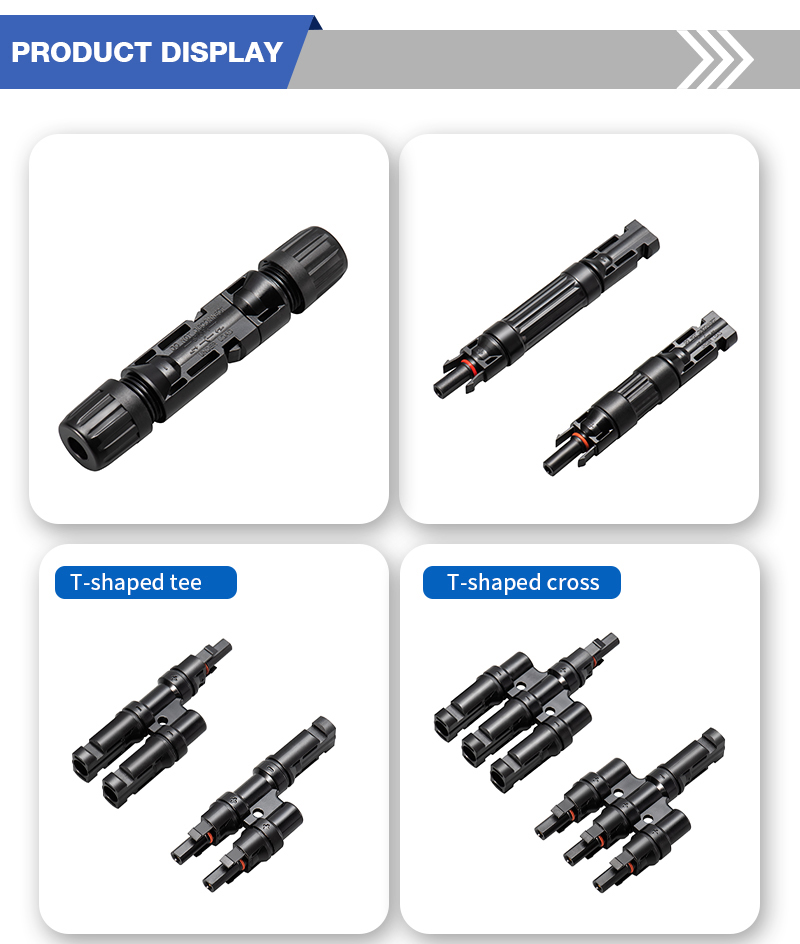

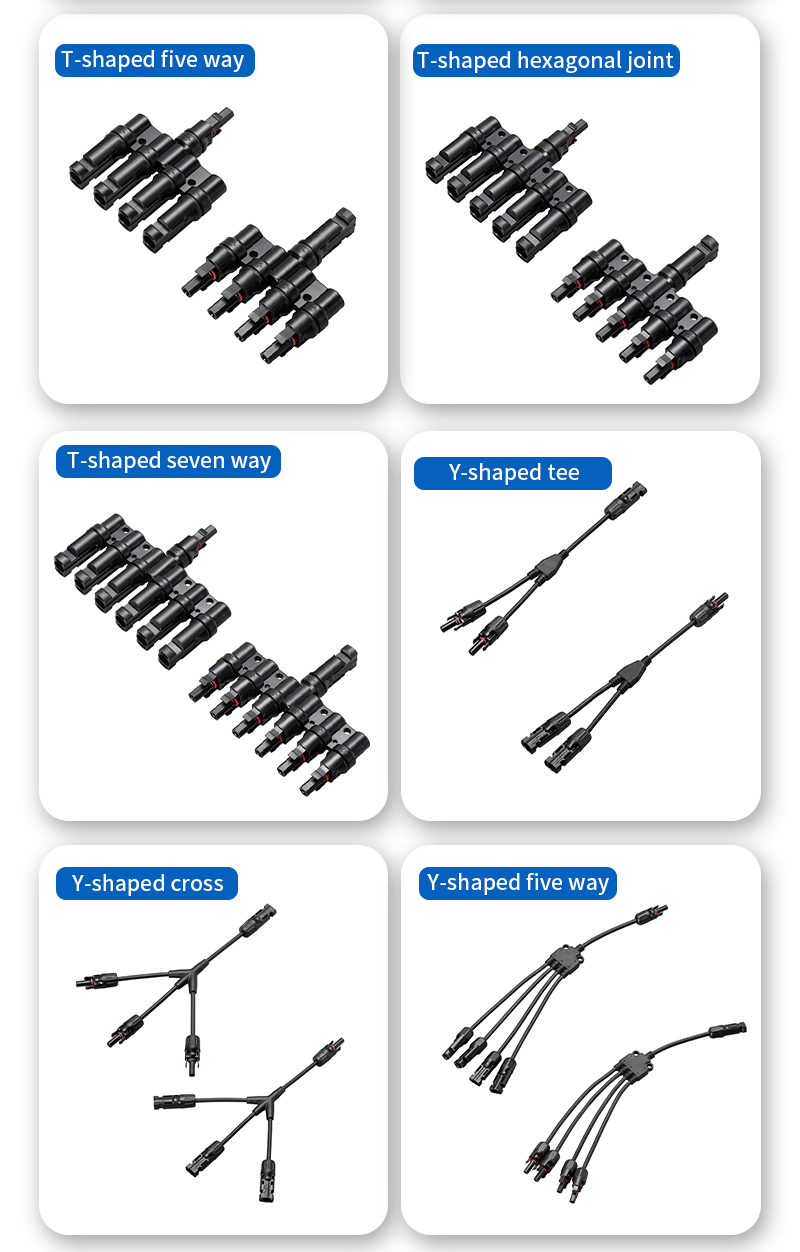

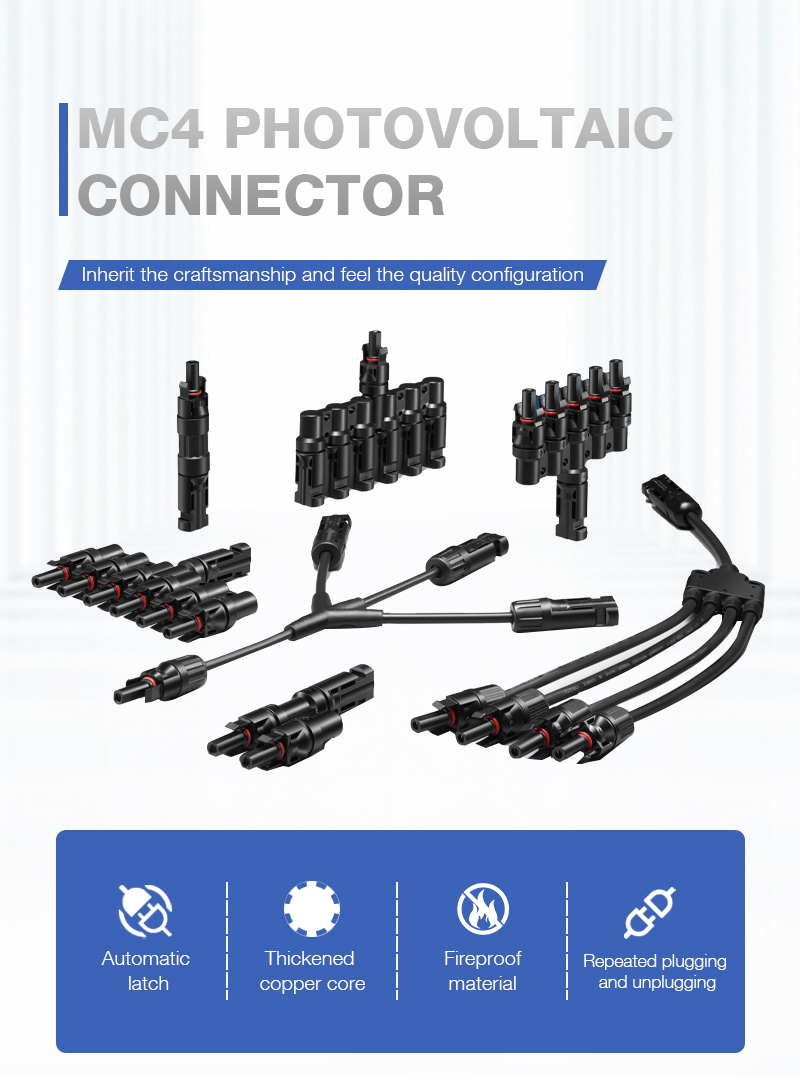

Mingguan PV connectors are widely used in solar system, from small charge controller, home use inverter system, to larger type inverter system, we offer various types of connectors, always be one of them suitable for you.
Features:
Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.
Double seal rings for better waterproof effect.
Compatible with PV cables with different insulation diameters.
Resistance of extra high & low temperature and fireproof.
Load capability with big current and high voltage.
Mingguan Solar Connector, users can directly connect solar panel to inverter, without the consideration of anti-reverse device.
Ensure safe and efficient usage of solar panel connecting to inverter, without worry of wrong connection.
| Contact material | Copper,Tin plated |
| Insertion force | Max. 50N |
| Withdrawal force | Min. 50N |
| Ambient temperature range | -40℃~+90℃ |
| Connecting system | Crimping connection |

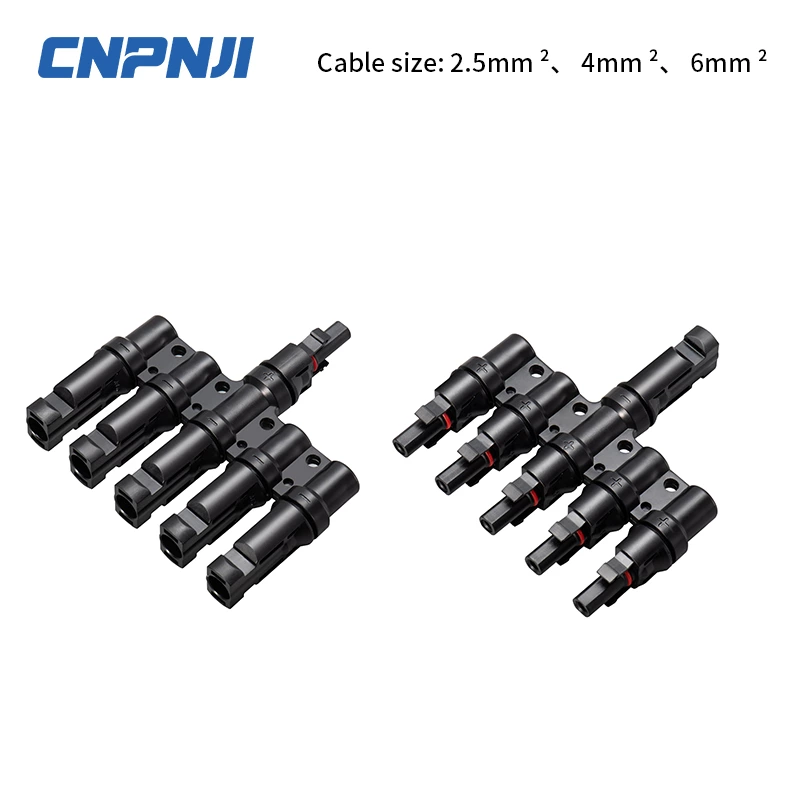

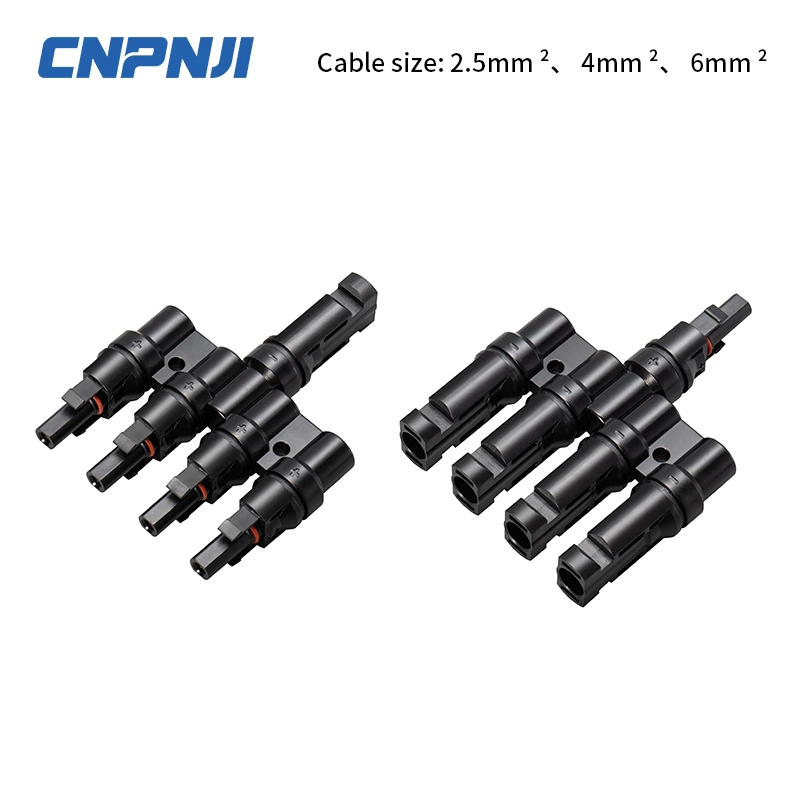

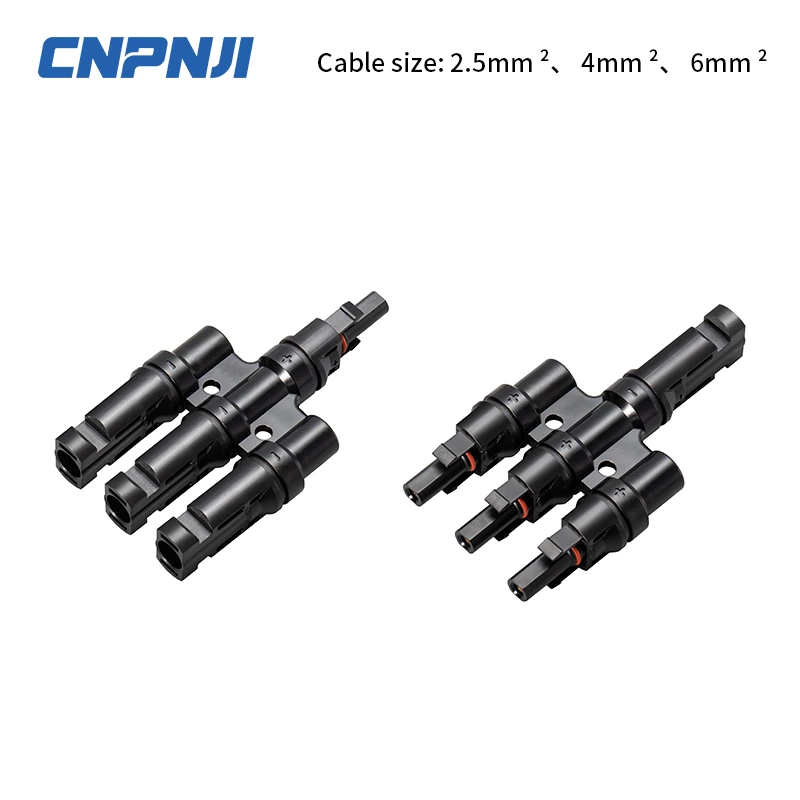

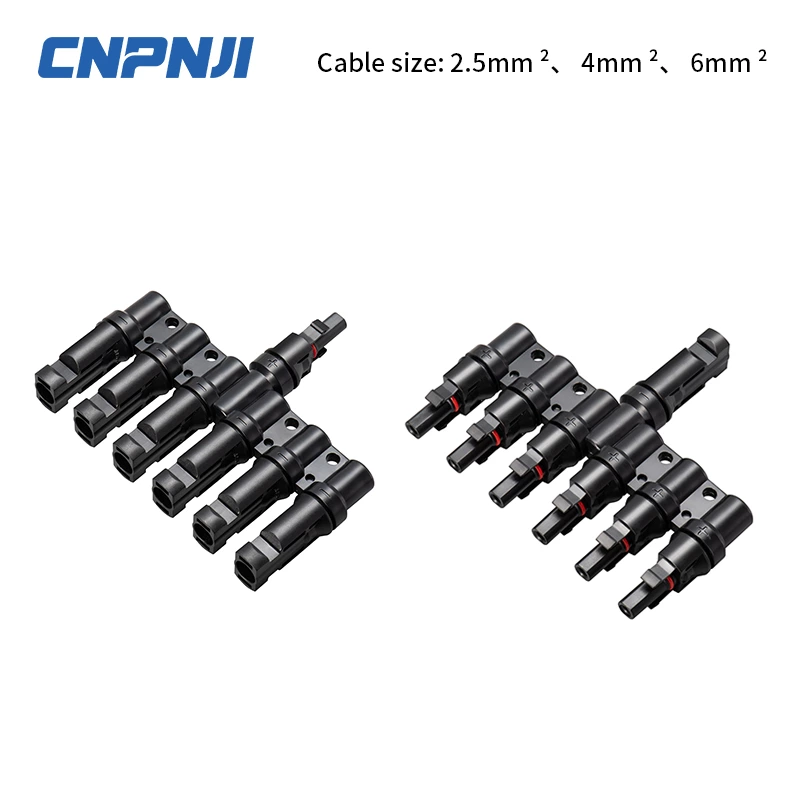

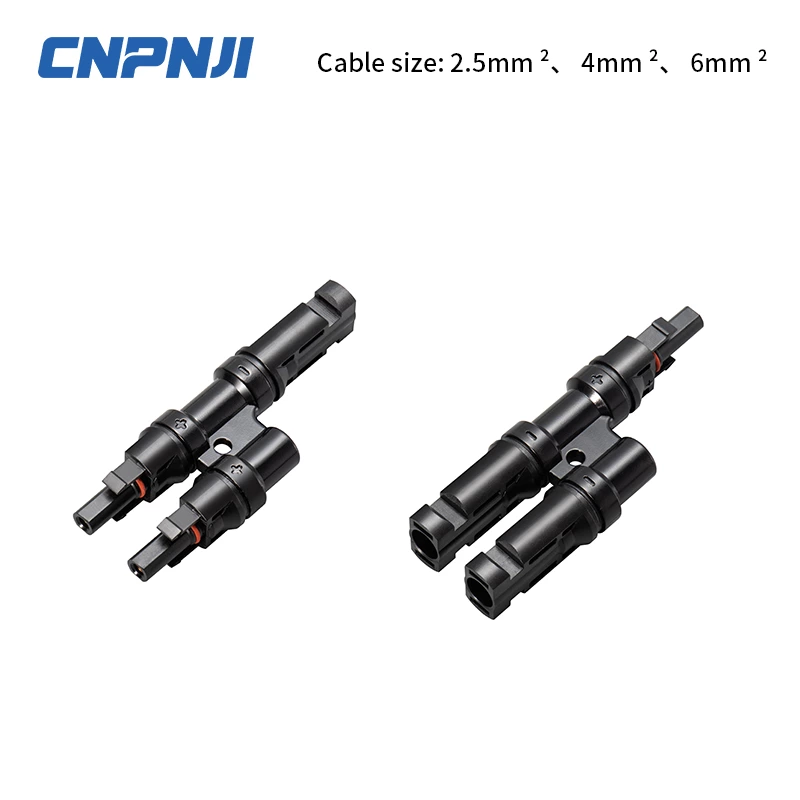

| Suitable cable cross section | 2.5/4/6mm2, 14/12/10/8AWG |
| Insulation Material | PVC |
| Rated current | 50A |
| Rated Voltage | 1000V/1500V DC |
| Test voltage | 8kV(50Hz,1min) |
| Contact resistance | <1mΩ |
| Waterproof protection | IP67 |
| Overvoltage degree | CATIII/2 |

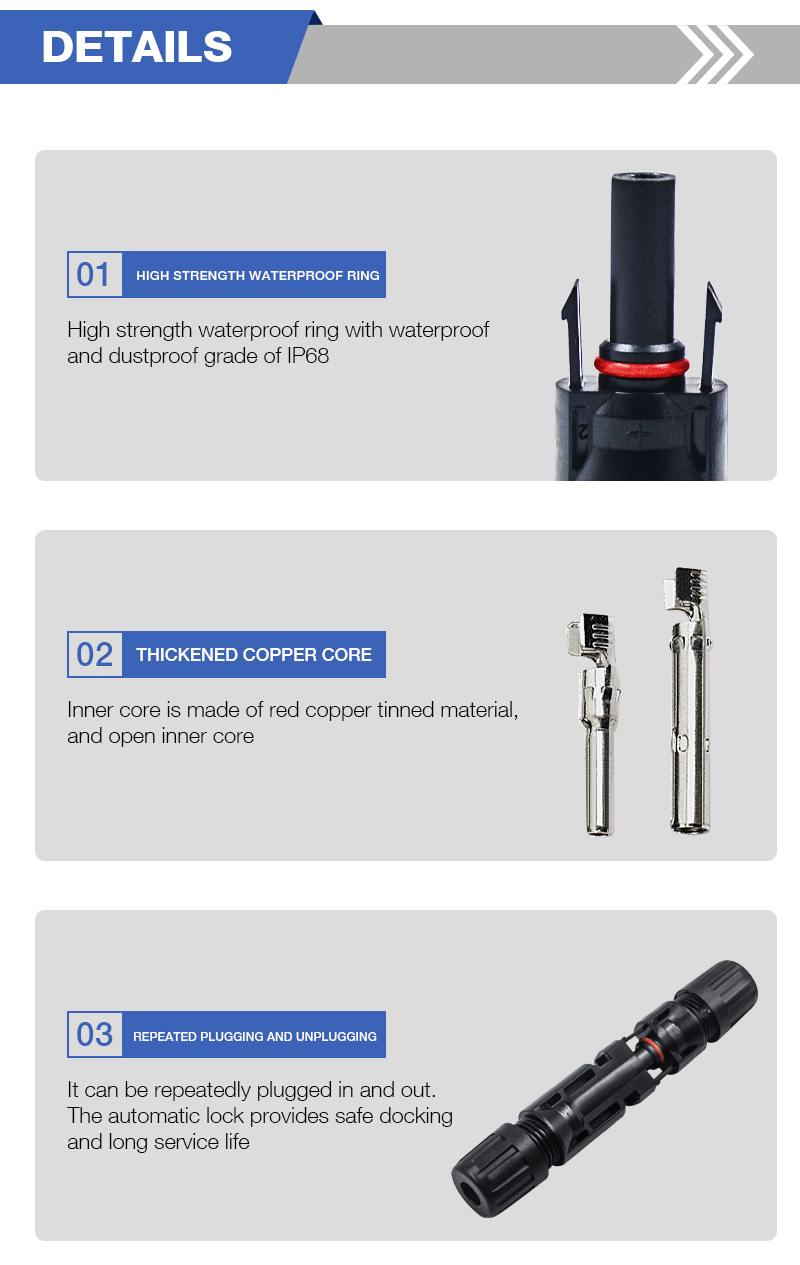

Detail information
Simple on-site processing

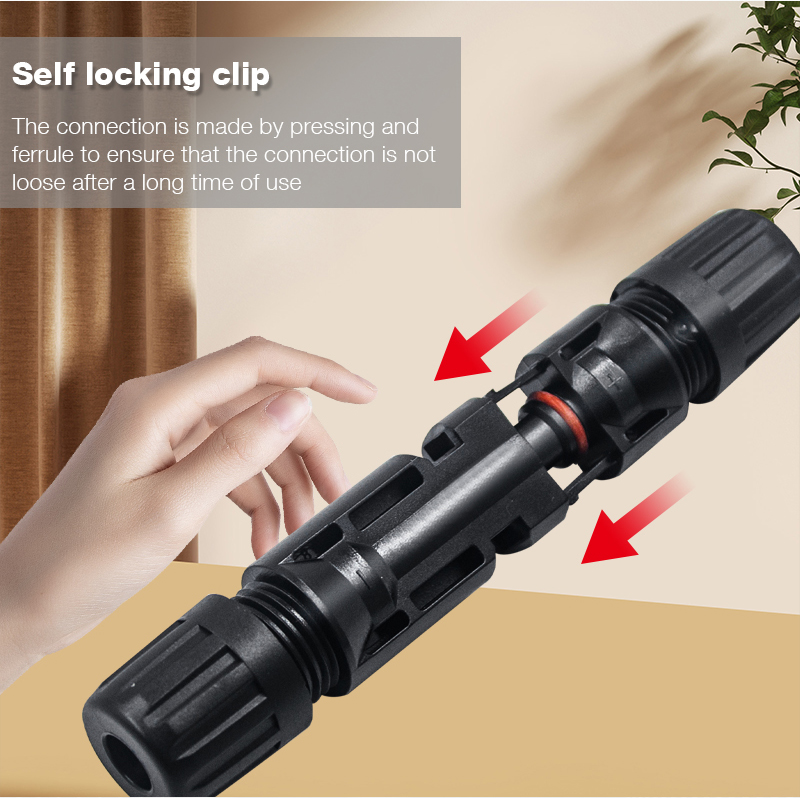

Mating safety provided by keyed housings
Mutiple plugging and unplugging cycles
Accomodates PV cable with deferent insulation diamaters
High current carrying capacity
Ensure safe and efficient usage of solar panel connecting to inverter, without worry of wrong connection.
