Product Name :PB Series Plastic Enclosure junction box(Nylon Screw)
Model :PB-AG,PB-AT,PB-PG,PB-PT
Material : ABS,Plastic
Colour : Light Gray or Customize
Application : Electrical or industrial
Processing : Plastic Injection
Customization : Cutout holes, silkscreen print etc
Drawing Format :PDF, CAD, STP, Jpg etc
Function : Water-proof, Dust-proof, Fire-proof, Ultraviolet-proof
Protection Level:Ip66

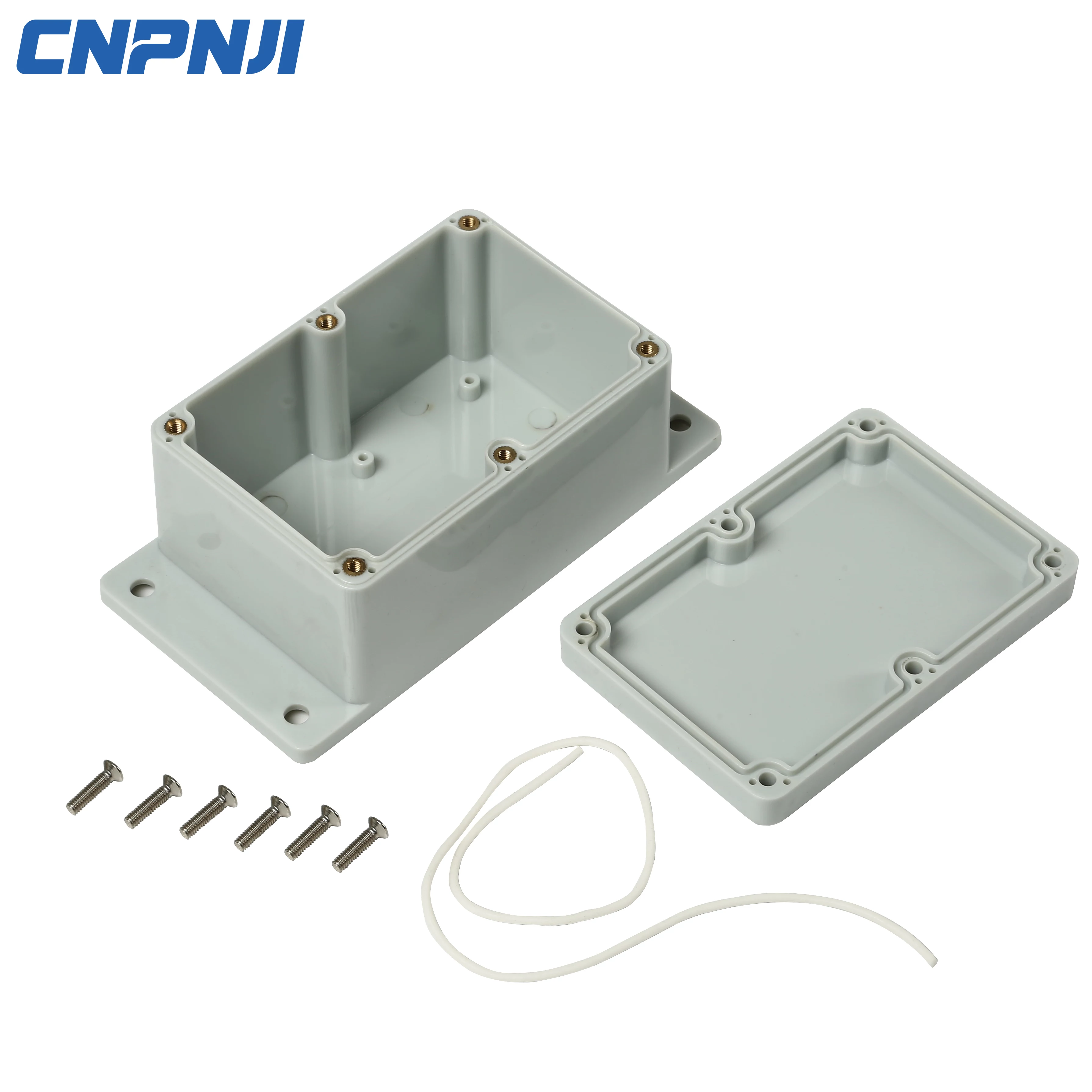

The PB series plastic housing junction box is made of high-quality plastic, with high hardness and durability. Equipped with screws for easy assembly. It has good performance, no corrosion, anti static, and insulation resistance. There are screw holes inside for PCB fixing. It can be used indoors and outdoors, suitable for various types of control boxes, cabinets, power distribution instrument boxes, electronic enclosures, etc.
| Size | Product Modle | |||
| ABS | PC/ABS | PC | PC | |
| Cover:Grey Body:Grey | Cover:Transparent（PC） Body:Grey(ABS) | Cover:Grey Body:Grey | Cover:Transparent Body:Grey | |
| 50*65*55 | PB-AG-050605 | PB-AT-050605 | PB-PG-050605 | PB-PT-050605 |
| 55*70*43 | PB-AG-050704 | PB-AT-050704 | PB-PG-050704 | PB-PT-050704 |
| 55*91*43 | PB-AG-050904 | PB-AT-050904 | PB-PG-050904 | PB-PT-050904 |
| 65*95*55 | PB-AG-060905 | PB-AT-060905 | PB-PG-060905 | PB-PT-060905 |
| 75*91*43 | PB-AG-070904 | PB-AT-070904 | PB-PG-070904 | PB-PT-070904 |
| 75*105*60 | PB-AG-071006 | PB-AT-071006 | PB-PG-071006 | PB-PT-071006 |
| 75*125*48 | PB-AG-071204-S | PB-AT-071204-S | PB-PG-071204-S | PB-PT-071204-S |
| 75*125*75 | PB-AG-071207 | PB-AT-071207 | PB-PG-071207 | PB-PT-071207 |
| 75*125*100 | PB-AG-071210-1 | PB-AT-071210-1 | PB-PG-071210-1 | PB-PT-071210-1 |
| 80*80*60 | PB-AG-080806 | PB-AT-080806 | PB-PG-080806 | PB-PT-080806 |
| 80*80*65 | PB-AG-080808-1 | PB-AT-080808-1 | PB-PG-080808-1 | PB-PT-080808-1 |
| 80*110*45 | PB-AG-081104-S | PB-AT-081104-S | PB-PG-081104-S | PB-PT-081104-S |
| 80*110*60 | PB-AG-081106-1S | PB-AT-081106-1S | PB-PG-081106-1S | PB-PT-081106-1S |
| 80*110*70 | PB-AG-081107 | PB-AT-081107 | PB-PG-081107 | PB-PT-081107 |
| 80*110*85 | PB-AG-081108-1 | PB-AT-081108-1 | PB-PG-081108-1 | PB-PT-081108-1 |
| 80*110*100 | PB-AG-081110-2 | PB-AT-081110-2 | PB-PG-081110-2 | PB-PT-081110-2 |
| 80*110*115 | PB-AG-081111-3 | PB-AT-081111-3 | PB-PG-081111-3 | PB-PT-081111-3 |
| 80*130*70 | PB-AG-081307 | PB-AT-081307 | PB-PG-081307 | PB-PT-081307 |
| 80*130*85 | PB-AG-081308-1 | PB-AT-081308-1 | PB-PG-081308-1 | PB-PT-081308-1 |
| 80*160*55 | PB-AG-081605-S | PB-AT-081605-S | PB-PG-081605-S | PB-PT-081605-S |
| 80*160*90 | PB-AG-081609 | PB-AT-081609 | PB-PG-081609 | PB-PT-081609 |
| 80*180*70 | PB-AG-081807 | PB-AT-081807 | PB-PG-081807 | PB-PT-081807 |
| 80*180*85 | PB-AG-081808-1 | PB-AT-081808-1 | PB-PG-081808-1 | PB-PT-081808-1 |
| 80*220*70 | PB-AG-082207 | PB-AT-082207 | PB-PG-082207 | PB-PT-082207 |
| 80*250*70 | PB-AG-082507 | PB-AT-082507 | PB-PG-082507 | PB-PT-082507 |
| 80*250*85 | PB-AG-082508-1 | PB-AT-082508-1 | PB-PG-082508-1 | PB-PT-082508-1 |
| 80*250*100 | PB-AG-082510-2 | PB-AT-082510-2 | PB-PG-082510-2 | PB-PT-082510-2 |
| 91*110*43 | PB-AG-091004 | PB-AT-091004 | PB-PG-091004 | PB-PT-091004 |
| 90*125*48 | PB-AG-091204 | PB-AT-091204 | PB-PG-091204 | PB-PT-091204 |
| 94*130*70 | PB-AG-091307 | PB-AT-091307 | PB-PG-091307 | PB-PT-091307 |
| 94*130*100 | PB-AG-091310-1 | PB-AT-091310-1 | PB-PG-091310-1 | PB-PT-091310-1 |
| 100*100*75 | PB-AG-101007 | PB-AT-101007 | PB-PG-101007 | PB-PT-101007 |
| 100*100*100 | PB-AG-101010-1 | PB-AT-101010-1 | PB-PG-101010-1 | PB-PT-101010-1 |
| 100*224*75 | PB-AG-102207 | PB-AT-102207 | PB-PG-102207 | PB-PT-102207 |
| 100*180*75 | PB-AG-101807 | PB-AT-101807 | PB-PG-101807 | PB-PT-101807 |
| 113*183*90 | PB-AG-111809 | PB-AT-111809 | PB-PG-111809 | PB-PT-111809 |
| 113*183*105 | PB-AG-111810-1 | PB-AT-111810-1 | PB-PG-111810-1 | PB-PT-111810-1 |
| 120*160*90 | PB-AG-121609 | PB-AT-121609 | PB-PG-121609 | PB-PT-121609 |
| 120*200*75 | PB-AG-122007 | PB-AT-122007 | PB-PG-122007 | PB-PT-122007 |
| 120*220*85 | PB-AG-122208 | PB-AT-122208 | PB-PG-122208 | PB-PT-122208 |
| 125*125*75 | PB-AG-121707-S | PB-AT-121707-S | PB-PG-121707-S | PB-PT-121707-S |
| 125*125*100 | PB-AG-121210 | PB-AT-121210 | PB-PG-121210 | PB-PT-121210 |
| 125*175*75 | PB-AG-121707 | PB-AT-121707 | PB-PG-121707 | PB-PT-121707 |
| 125*175*100 | PB-AG-121710-1 | PB-AT-121710-1 | PB-PG-121710-1 | PB-PT-121710-1 |
| 125*175*110 | PB-AG-121711-2 | PB-AT-121711-2 | PB-PG-121711-2 | PB-PT-121711-2 |
| 125*175*135 | PB-AG-121713-3 | PB-AT-121713-3 | PB-PG-121713-3 | PB-PT-121713-3 |
| 140*170*95 | PB-AG-141709 | PB-AT-141709 | PB-PG-141709 | PB-PT-141709 |
| 140*230*95 | PB-AG-142309 | PB-AT-142309 | PB-PG-142309 | PB-PT-142309 |
| 150*200*75 | PB-AG-152007-S | PB-AT-152007-S | PB-PG-152007-S | PB-PT-152007-S |
| 150*200*100 | PB-AG-152010 | PB-AT-152010 | PB-PG-152010 | PB-PT-152010 |
| 150*200*130 | PB-AG-152013-1 | PB-AT-152013-1 | PB-PG-152013-1 | PB-PT-152013-1 |
| 150*200*130 | PB-AG-152013-2 | PB-AT-152013-2 | PB-PG-152013-2 | PB-PT-152013-2 |
| 150*200*160 | PB-AG-152016-3 | PB-AT-152016-3 | PB-PG-152016-3 | PB-PT-152016-3 |
| 150*250*100 | PB-AG-152510 | PB-AT-152510 | PB-PG-152510 | PB-PT-152510 |
| 150*250*130 | PB-AG-152513-1 | PB-AT-152513-1 | PB-PG-152513-1 | PB-PT-152513-1 |
| 150*250*130 | PB-AG-152513-2 | PB-AT-152513-2 | PB-PG-152513-2 | PB-PT-152513-2 |
| 150*250*160 | PB-AG-152516-3 | PB-AT-152516-3 | PB-PG-152516-3 | PB-PT-152516-3 |
| 175*175*75 | PB-AG-171707 | PB-AT-171707 | PB-PG-171707 | PB-PT-171707 |
| 175*175*100 | PB-AG-171710-1 | PB-AT-171710-1 | PB-PG-171710-1 | PB-PT-171710-1 |
| 175*175*125 | PB-AG-171712-2 | PB-AT-171712-2 | PB-PG-171712-2 | PB-PT-171712-2 |
| 175*175*150 | PB-AG-171715-3 | PB-AT-171715-3 | PB-PG-171715-3 | PB-PT-171715-3 |
| 175*250*75 | PB-AG-172507 | PB-AT-172507 | PB-PG-172507 | PB-PT-172507 |
| 175*250*100 | PB-AG-172510-1 | PB-AT-172510-1 | PB-PG-172510-1 | PB-PT-172510-1 |
| 180*255*100 | PB-AG-182510 | PB-AT-182510 | PB-PG-182510 | PB-PT-182510 |
| 200*200*95 | PB-AG-202009-S | PB-AT-202009-S | PB-PG-202009-S | PB-PT-202009-S |
| 200*200*125 | PB-AG-202012-1 | PB-AT-202012-1 | PB-PG-202012-1 | PB-PT-202012-1 |
| 200*200*130 | PB-AG-202013 | PB-AT-202013 | PB-PG-202013 | PB-PT-202013 |
| 200*200*160 | PB-AG-202016-2 | PB-AT-202016-2 | PB-PG-202016-2 | PB-PT-202016-2 |
| 200*250*100 | PB-AG-202510 | PB-AT-202510 | PB-PG-202510 | PB-PT-202510 |
| 200*300*105 | PB-AG-203010 | PB-AT-203010 | PB-PG-203010 | PB-PT-203010 |
1. Install according to the usage environment of the waterproof box. Some boxes will be used on mechanical equipment, which generally requires that the box be fixed tightly, otherwise it may fall off easily. Therefore, it is necessary to use strong adhesive or screws for fixation during installation. There are also surface mounted boxes that require waterproof boxes with ears, which can be installed outside the wall.
2. Install according to the selected components. The plastic waterproof box has installation holes inside, which can be equipped with bottom plate reinforcement components, as well as waterproof connectors, wiring terminals, and other products.
