Product Description

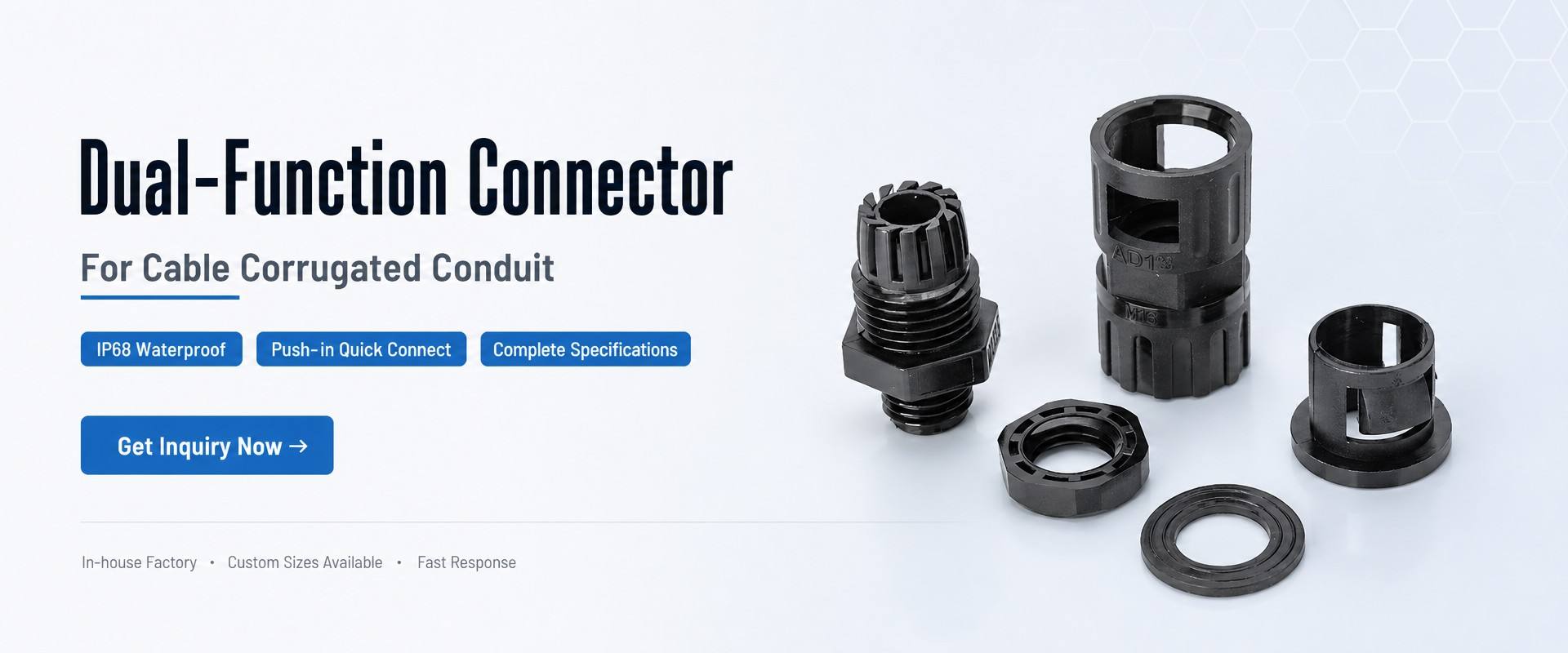

This dual-function connector for cable corrugated conduit is engineered for cable protection and quick wiring installation. It features an IP68 waterproof rating and push-in quick connection design, delivering reliable sealing and tensile resistance. Made of high-performance nylon PA66 material, it adapts to a wide temperature range and fits various corrugated conduit specifications. Widely used in automation equipment, machinery and engineering wiring projects to safeguard cables against moisture, dust and pull force.
Key Features
SKU |
Conduit AD Size | Thread Spec. | Cable Clamping Range (mm) |
|---|---|---|---|
| Dual-lock AD10-M12S*1.5 | AD10 | M12S×1.5 | 3-6.5 |
| Dual-lock AD10-PG7S | AD10 | PG7S | 3-6.5 |
| Dual-lock AD13-M12*1.5 | AD13 | M12×1.5 | 4-8 |
| Dual-lock AD13-PG7 | AD13 | PG7 | 4-8 |
| Dual-lock AD13-M16S | AD13 | M16S | 4-8 |
| Dual-lock AD13-G1/4 | AD13 | G1/4 | 4-8 |
| Dual-lock AD13-PG9 | AD13 | PG9 | 4-8 |
| Dual-lock AD15.8-M16 | AD15.8 | M16 | 6-10 |
| Dual-lock AD15.8-M18 | AD15.8 | M18 | 6-10 |
| Dual-lock AD15.8-PG11 | AD15.8 | PG11 | 6-10 |
| Dual-lock AD15.8-G3/8 | AD15.8 | G3/8 | 6-10 |
| Dual-lock AD15.8-NPT3/8 | AD15.8 | NPT3/8 | 6-10 |
| Dual-lock AD18.5-M20S | AD18.5 | M20S | 6-12.5 |
| Dual-lock AD18.5-PG13.5 | AD18.5 | PG13.5 | 6-12.5 |
| Dual-lock AD18.5-G1/2 | AD18.5 | G1/2 | 6-12.5 |
| Dual-lock AD18.5-NPT1/2 | AD18.5 | NPT1/2 | 6-12.5 |
| Dual-lock AD21.2-M20 | AD21.2 | M20 | 8.5-14 |
| Dual-lock AD21.2-M22 | AD21.2 | M22 | 8.5-14 |
| Dual-lock AD21.2-M24 | AD21.2 | M24 | 8.5-14 |
| Dual-lock AD21.2-M25S | AD21.2 | M25S | 8.5-14 |
| Dual-lock AD21.2-M32M | AD21.2 | M32M | 8.5-14 |
| Dual-lock AD21.2-PG16 | AD21.2 | PG16 | 8.5-14 |
| Dual-lock AD21.2-PG19 | AD21.2 | PG19 | 8.5-14 |
| Dual-lock AD25-M25 | AD25 | M25 | 12.5-18 |
| Dual-lock AD25-M40M | AD25 | M40M | 12.5-18 |
| Dual-lock AD25-PG21 | AD25 | PG21 | 12.5-18 |
| Dual-lock AD25-G3/4 | AD25 | G3/4 | 12.5-18 |
| Dual-lock AD25-NPT3/4 | AD25 | NPT3/4 | 12.5-18 |
| Dual-lock AD34.5-M32 | AD34.5 | M32 | 18-25 |
| Dual-lock AD34.5-M36*1.5 | AD34.5 | M36×1.5 | 18-25 |
| Dual-lock AD34.5-M36*2 | AD34.5 | M36×2 | 18-25 |
| Dual-lock AD34.5-PG29 | AD34.5 | PG29 | 18-25 |
| Dual-lock AD34.5-M40S | AD34.5 | M40S | 18-25 |
| Dual-lock AD42.5-PG36 | AD42.5 | PG36 | 24-32 |
| Dual-lock AD42.5-G1-1/4 | AD42.5 | G1-1/4 | 24-32 |
| Dual-lock AD42.5-NPT1-1/2 | AD42.5 | NPT1-1/2 | 24-32 |
| Dual-lock AD54.5-M48*2 | AD54.5 | M48×2 | 31-41 |
| Dual-lock AD54.5-M50 | AD54.5 | M50 | 31-41 |
| Dual-lock AD54.5-M56*2 | AD54.5 | M56×2 | 31-41 |
FAQ for Dual-lock Connector for Cable Corrugated Conduit
Q1: What is the function of this dual-lock connector? A: It combines corrugated conduit connection and cable gland functions. It can fast lock corrugated conduit and clamp cables at the same time, providing cable sealing and strain relief.
Q2: What is the waterproof rating? A: IP68. It is dust-tight and protected against long-time immersion under specified water pressure, suitable for wet and dusty environments.
Q3: What material is this connector made of? A: Nylon PA66, flame retardant, high toughness, with operating temperature range from -40℃ to +105℃.
Q4: What thread types are available? A: Multiple thread options including Metric(M), PG, G and NPT threads to meet different cabinet/equipment hole requirements.
Q5: How to install this product? Do I need special tools? A: Push-in quick connection for corrugated conduit. No special tools required. Just push the conduit into the connector and tighten the cable locking nut. Fast and easy installation.
Q6: What is the cable clamping range? A: The clamping range varies by SKU, covering 3~41mm cable diameter. Please check our technical table to select the right model.
Q7: Can this connector resist pulling force? A: Yes. Double locking structure locks both corrugated conduit and cable separately, offering excellent tension resistance to prevent cable pull-out.
Q8: Is customization available? A: Yes. We support customization, including special thread, color and packaging requirements.
