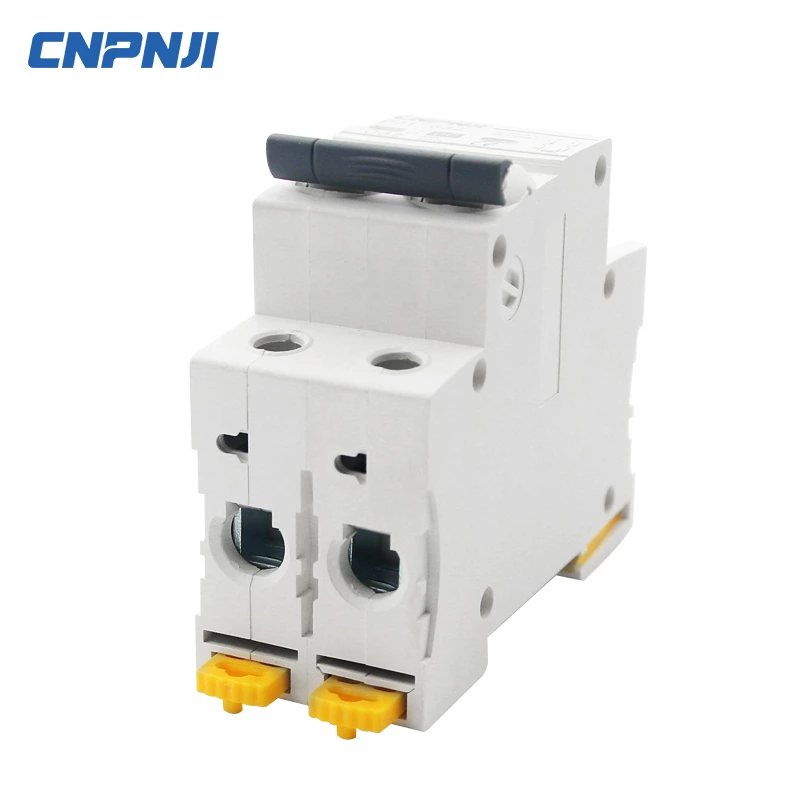

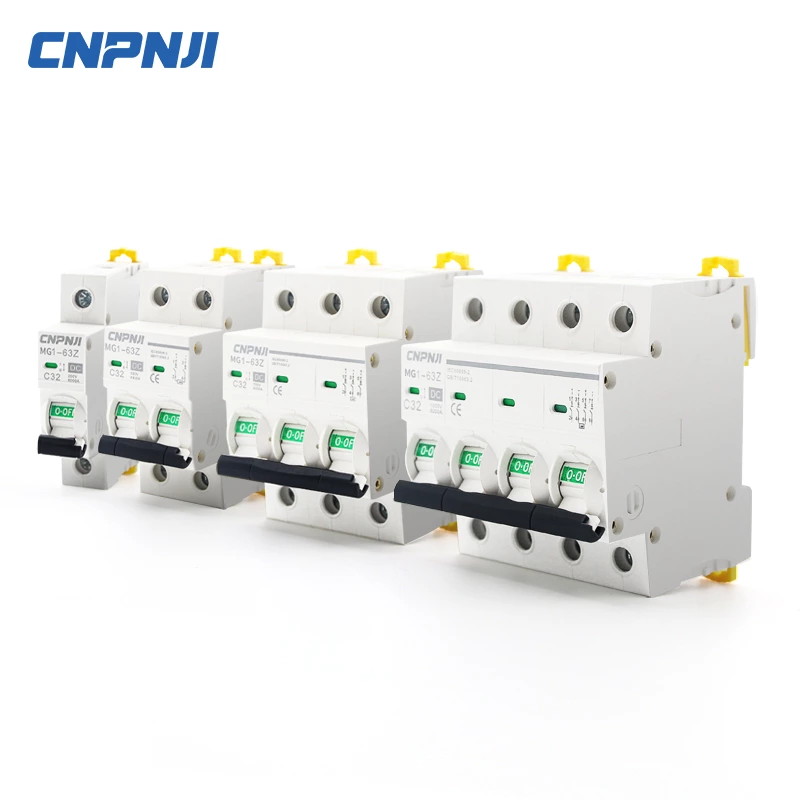

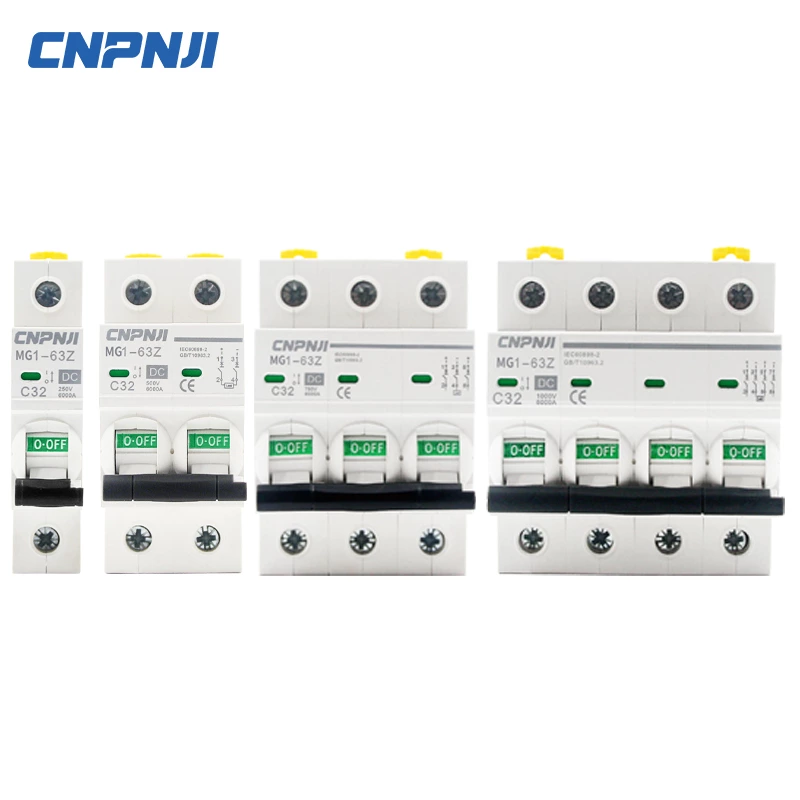

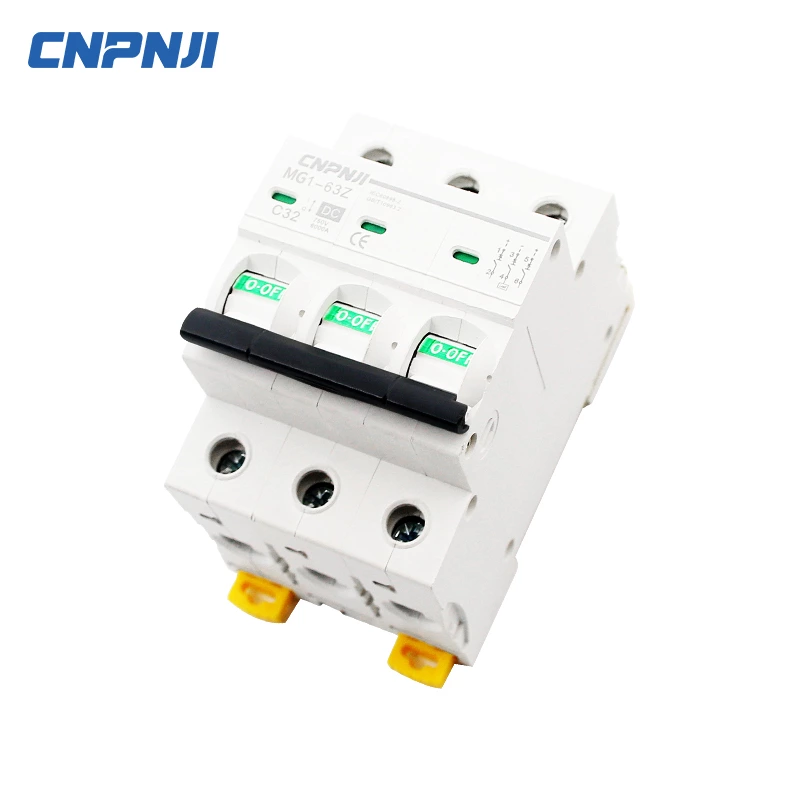

MCB 1/2/4 phase Miniature Circuit Breaker

Technical Parameters

Name
Miniature Circuit Breaker
Rated Current
63A
Number Of Poles
1
Rated Voltage
250V

Product Features
MCB has excellent breaking ability; Dual wiring function of wires and busbars; Energy storage operation, fast closure, long service life; Convenient installation and disassembly; Contact on/off indication for higher safety; Green, environmentally friendly, and energy-saving.

Technical parameter items Parameter value
Rated voltage
125V/250V DC(1P)、250V/500V DC(2P)、500V/1000V DC(4P)
Rated current
1A、2A、3A、4A、6A、10A、13A、16A、20A、25A、32A、40A、50A、63A
Rated insulation voltage
1000V
Rated impulse withstand voltage
4kV
number of poles
1P
Instantaneous release type
C(7~10)In
Rated ultimate short-circuit breaking capacity 6kA(1P 250V/2P 500V/4P 1000V)
10kA(1P 125V/2P 250V/4P 500V)
Mechanical and electrical life
Mechanical life 20000 times, electrical life 1500 times
Tightening torque 2.0Nm
class of pollution Level 2
Protection level
IP20
Installation Category Class II and III
