Metal Blianking Plug

Technical Parameters

Name
Metal blanking plug
Thread
Metric ,PG,NPT,G. Non-standard type can be customized .
Protection degree
can be upto IP68 while uesing with O-ring or gasket .
Working temperature
-40℃ to 100℃, instantaneous heat resistance up to 120 ℃. -20℃ to 80 ℃ in dynamic, instantaneous heat resistance up to 100℃.
Features
1.High quality brass material nickel coated with alkali resistant ,salt and acid resistant ,waterproof & dustproof .Long thread length can be costomized .
2.The reserved hole or extra holes will make the product more beautiful.
Materials
Brass nickel plated ,Nitrile butaidene rubber (NBR) or EPDM ,SI (silicone) O-ring.

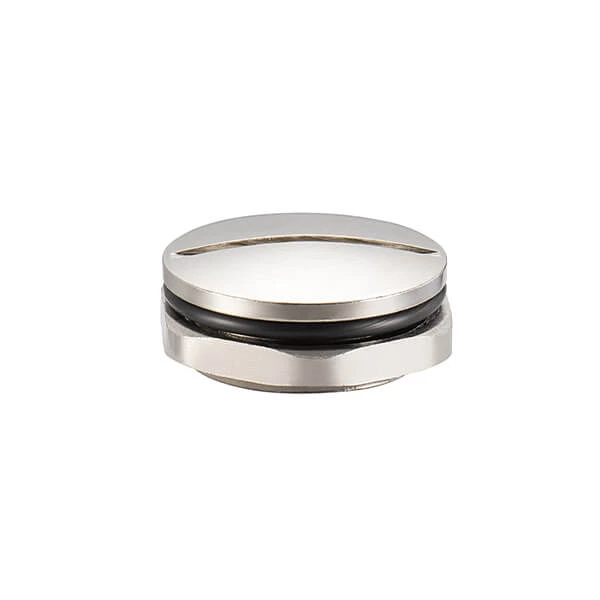

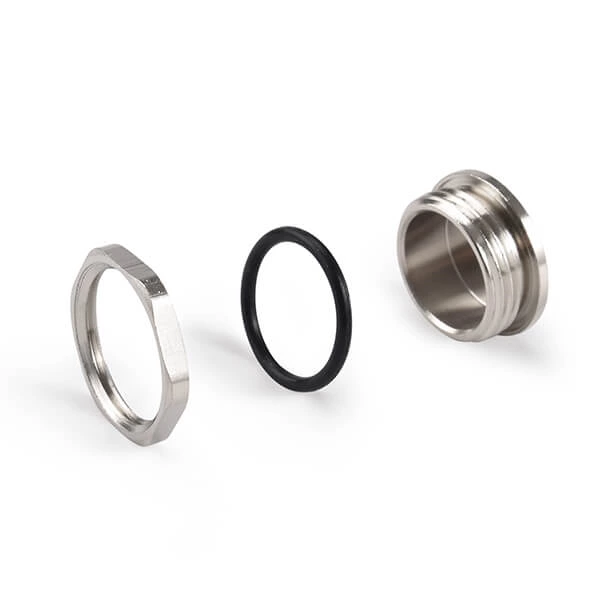

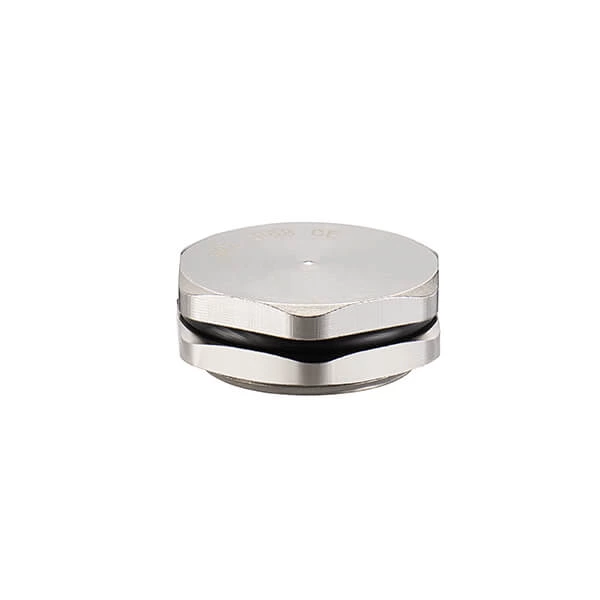

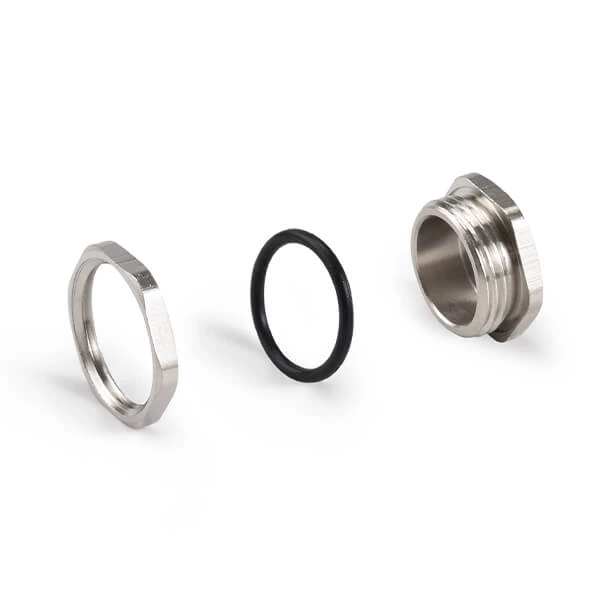

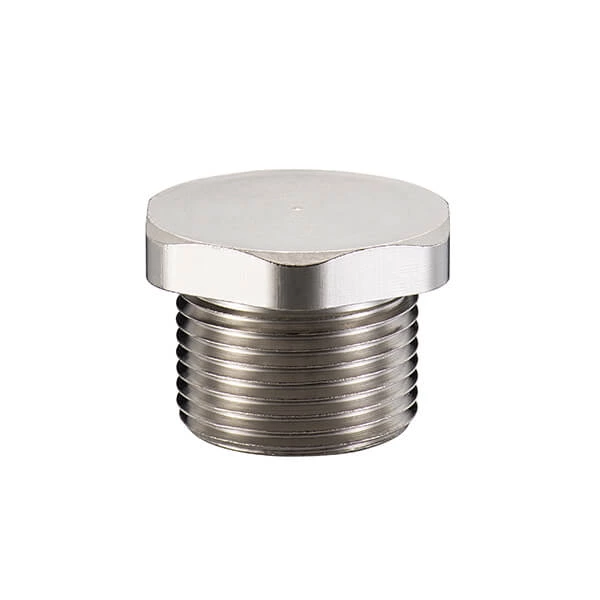

Metal Blianking Plug
Metal Blianking Plug Metal Blianking Plug Metal Blianking Plug Metal Blianking Plug Metal Blianking Plug

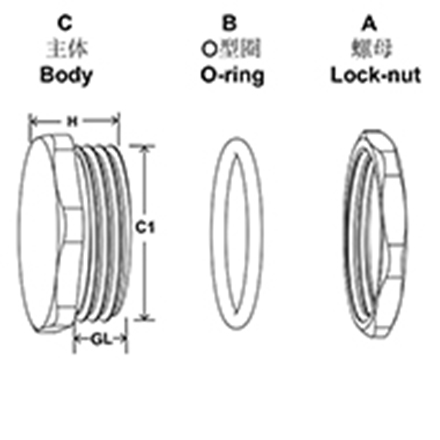

Decomposition Diagrams

Technical Data sheet

Brass Screw Cap-Hexagon
Cat. No. Thread O.D
C1 (mm)
Thread Length
GL (mm)
Height
H (mm)
Spanner Size
 A (mm)
Std.pkg
(pcs/bag)
PJ-M12H 12 5 8 14 50
PJ-M14H 14 5 9 17 50
PJ-M16H 16 6 9 17 50
PJ-M18H 18 6 9.5 20 50
PJ-M20H 20 6.5 9.5 22 50
PJ-M22H 22 6.5 10 24 50
PJ-M24H 24 6.5 10 27 50
PJ-M25H 25 6.5 10 27 50
PJ-M30H 30 6.5 11 33 50
PJ-M32H 32 7 12 35 50
PJ-M36H 36 8 12 39 50
PJ-M40H 40 8 13 43 50
PJ-M47H 47 9 15 50 50
PJ-M50H 50 9 15 55 50
PJ-M54H 54 10 16 57 50
PJ-M60H 60 10 16 64 50
PJ-M63H 63 10 16 66 50
PJ-M72H 72 10 16 75 50
PJ-PG7H 12.5 5 8 14 50
PJ-PG9H 15.2 6 9 17 50
PJ-PG11H 18.6 6 9 20 50
PJ-PG13.5H 20.4 6.5 9.5 22 50
PJ-PG16H 22.5 6.5 9.5 24 50
PJ-PG21H 28.3 7 11 30 50
PJ-PG29H 37 8 12 39 50
PJ-PG36H 47 9 15 50 50
PJ-PG42H 54 10 16 57 50
PJ-PG48H 59.3 10 16 64 50

Decomposition Diagrams

Technical Data sheet

Brass Screw Cap-Circle
Cat. No. Thread O.D
C1(mm)
Thread Length
GL(mm)
Height
H(mm)
Spanner Size
  A (mm)
Std.pkg
(pcs/bag)
PJ-M12C 12 5 8 14 50
PJ-M14C 14 5 9 17 50
PJ-M16C 16 6 9 17 50
PJ-M18C 18 6 9.5 20 50
PJ-M20C 20 6.5 9.5 22 50
PJ-M22C 22 6.5 10 24 50
PJ-M24C 24 6.5 10 27 50
PJ-M25C 25 6.5 10 27 50
PJ-M30C 30 6.5 11 33 50
PJ-M32C 32 7 12 35 50
PJ-M36C 36 8 12 39 50
PJ-M40C 40 8 13 43 50
PJ-M47C 47 9 15 50 50
PJ-M50C 50 9 15 55 50
PJ-M54C 54 10 16 57 50
PJ-M60C 60 10 16 64 50
PJ-M63C 63 10 16 66 50
PJ-M72C 72 10 16 75 50
PJ-PG7C 12.5 5 8 14 50
PJ-PG9C 15.2 6 9 17 50
PJ-PG11C 18.6 6 9 20 50
PJ-PG13.5C 20.4 6.5 9.5 22 50
PJ-PG16C 22.5 6.5 9.5 24 50
PJ-PG21C 28.3 7 11 30 50
PJ-PG29C 37 8 12 39 50
PJ-PG36C 47 9 15 50 50
PJ-PG42C 54 10 16 57 50
PJ-PG48C 59.3 10 16 64 50
,

,

,

,
