PE White Black Round Spiral Wire Wrapping Band cable wire wrap

Catalog Download

Technical Parameters

Product material
HDPE
Colors
Standard in natural& lack and .Other colors available upon request.
Features
1. Easy installation: No other tools needed. Spiral Cable Wrap the cable management sleeves around your cords and within a minute
2. Safety: Spiral Wrap (Heavy-Duty) provides safe protection for cables, wires, hoses, & tubing from the wear and tear, prevent electric leakage.
3.Easy to cut and wrap.
4.Protects against abrasion, chafing and cuts and also helps prevent tangling.
5.Made of frost and heat resistant HDPE(Heavy-Duty Polyethylene).
6.This polyethylene is extruded, giving its final form smooth, rounded edges.
Temperature Range
-50C to 80C (-58F to 176F).

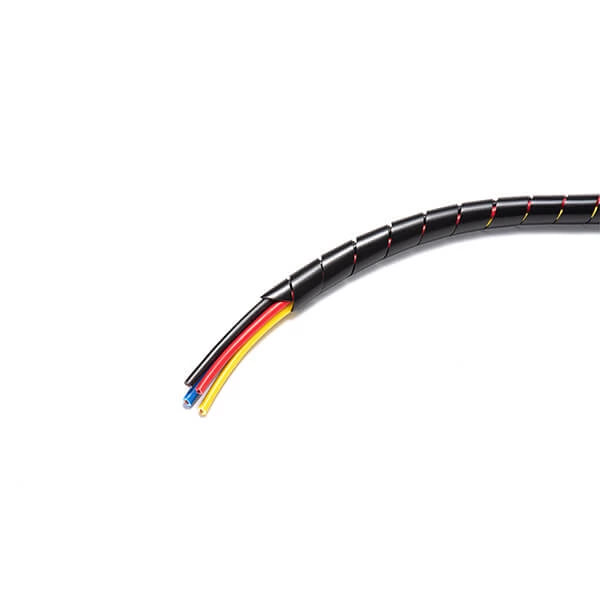

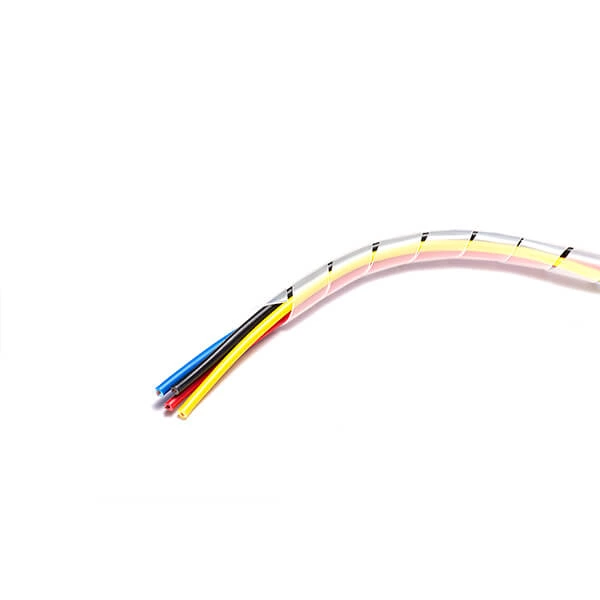

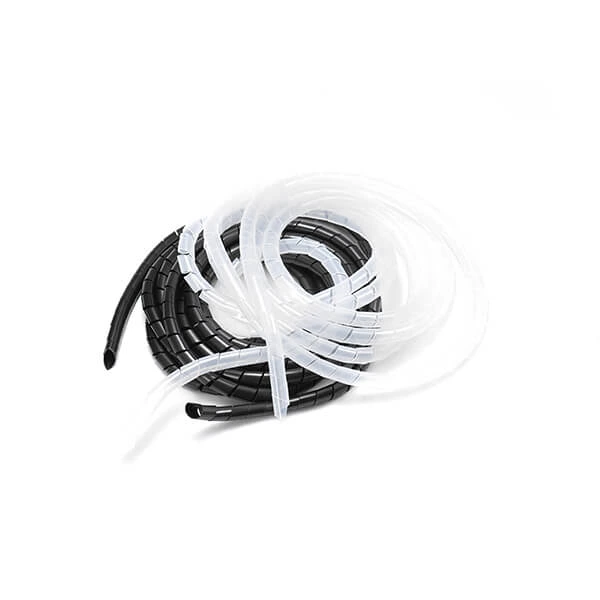

PE White Black Round Spiral Wire Wrapping Band cable wire wrap
PE White Black Round Spiral Wire Wrapping Band cable wire wrap PE White Black Round Spiral Wire Wrapping Band cable wire wrap PE White Black Round Spiral Wire Wrapping Band cable wire wrap PE White Black Round Spiral Wire Wrapping Band cable wire wrap

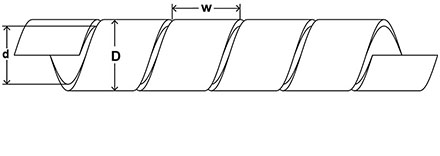

Decomposition Diagrams


Technical Data sheet

Spiral Wrapping Bands
Cat. No d(mm) D(mm) W(mm) Wrapping Range
(mm)		 Packing
(Mts/Bag)
PJ-SWB-03 1.5  3.0  4.0  1.5-10 10mm
PJ-SWB-06 4.0  6.0  7.0  4-50 10mm
PJ-SWB-08 6.0  8.0  10.8  6-60 10mm
PJ-SWB-10 8.0  10.0  11.4  7.5-60 10mm
PJ-SWB-12 9.0  12.0  14.0  9-65 10mm
PJ-SWB-15 12.0  15.0  15.0  12-75 10mm
PJ-SWB-19 15.0  19.0  18.0  15-100 10mm
PJ-SWB-24 20.0  24.0  19.5  20-130 10mm
PJ-SWB-30 26.0  30.0  43.0  26-150 10mm
