Elbow Nylon Cable Gland

Technical Parameters

Thread
Metric,PG,G(PF) and NPT
Protection degree
IP68-10
Working temperature
-40℃ to 100℃, instantaneous heat resistance up to 120 ℃. -20℃ to 80 ℃ in dynamic, instantaneous heat resistance up to 100℃.
Features
The product is shaped at a 90 ° angle, providing a design of outlet holes with more outlet directions and ensuring curved cables and increased aesthetics.The claw and seals of excellent design.Sealling nut have a "click" sound and re-open resistance
Materials
UL approved Nylon PA66(Flammability UL94V-2)for A,C,E,F parts,UL 94V-0 nylon PA66 material can be customized;EPDM for B,D parts,can customize other rubber.

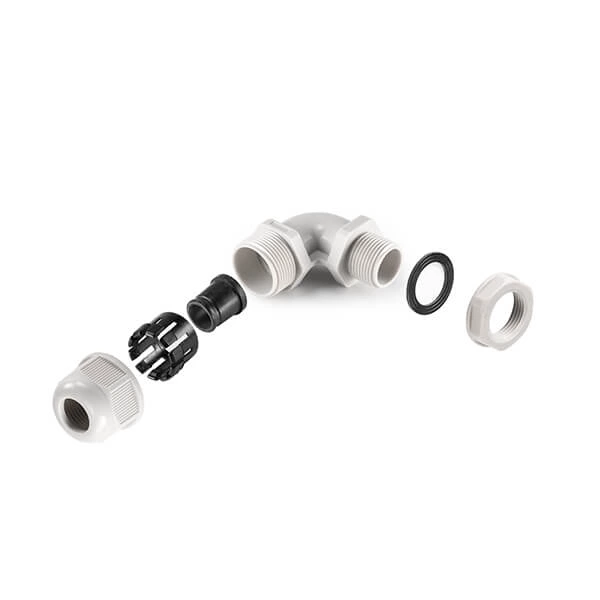

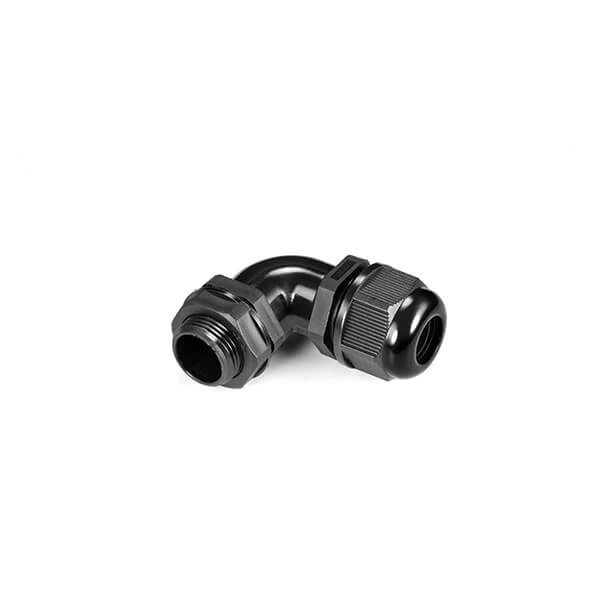

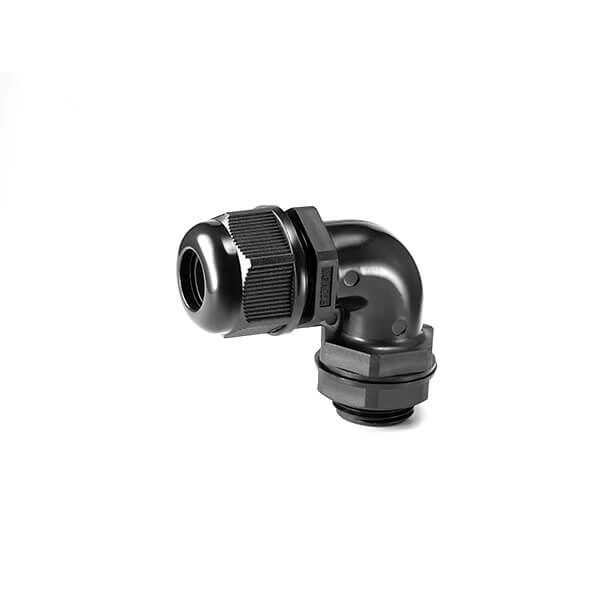

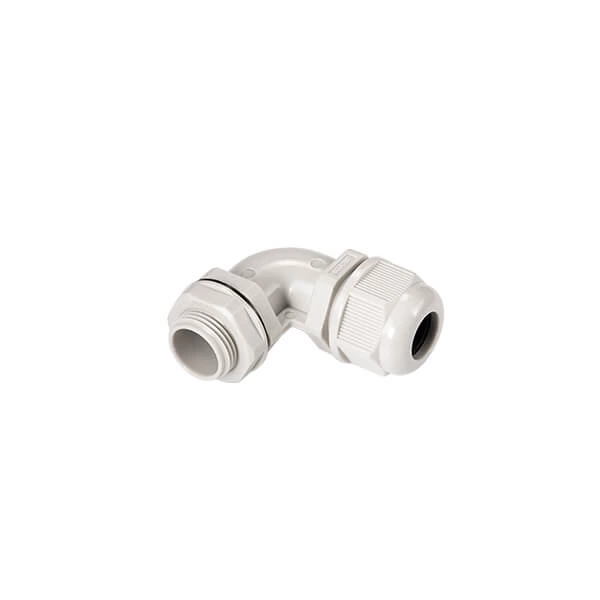

Elbow Nylon Cable Gland
Elbow Nylon Cable Gland Elbow Nylon Cable Gland Elbow Nylon Cable Gland Elbow Nylon Cable Gland Elbow Nylon Cable Gland

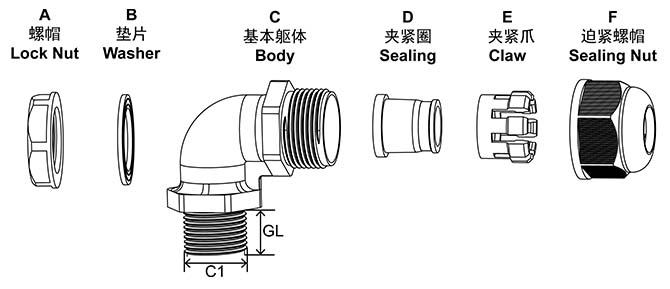

Decomposition Diagrams

Technical Data sheet

Nylon Elbow Cable Gland (A-type)
Metric
Thread Part No. Cable Range
φ(mm)
Thread O.D
C1(mm)
Thread Length
GL(mm)
Spanner Size
A/F(mm)
Std.pkg
(pcs/bag)
M16*1.5 MGA16-E-06 4-7 16 15 22/22 50
MGA16-E-08 5-8 16 15 22/22 50
MGA16-E-10 6-10 16 15 22/22 50
M20*1.5 MGA20-E-11 6-11 20 15 27/27 50
MGA20-E-14 8-14 20 15 27/27 50
M25*1.5 MGA25-E-16 12-16 25 15 33/39 50
MGA25-E-18 14-18 25 15 33/39 50
M32*1.5 MGA32-E-22 16-22 32 15 41/45 20
MGA32-E-25 18-25 32 15 41/45 20
M40*1.5 MGA40-E-26 20-26 40 20 50/55 12
MGA40-E-31 23-31 40 20 50/55 12
PG
Thread Part No. Cable Range
φ(mm)
Thread O.D
C1(mm)
Thread Length
GL(mm)
Spanner Size
A/F(mm)
Std.pkg
(pcs/bag)
PG16 PGA16-E-10 6-10 22.5 12 30/27 50
PGA16-E-14 8-14 22.5 12 30/27 50
G
Thread Part No. Cable Range
φ(mm)
Thread O.D
C1(mm)
Thread Length
GL(mm)
Spanner Size
A/F(mm)
Std.pkg
(pcs/bag)
G(PF)1/2 G(PF)1/2-E-10 6-10 20.955 12 27/27 50
G(PF)1/2-E-14 8-14 20.955 12 27/27 50
G(PF)3/4 G(PF)3/4-E-16 12-16 26.441 15 33/39 50
G(PF)3/4-E-18 14-18 26.441 15 33/39 50
G(PF)1 G(PF)1-E-22 16-22 33.249 15 42/45 50
G(PF)1-E-25 18-25 33.249 15 42/45 50
G(PF)1 1/4 G(PF)1 1/4-E-28 20-28 41.91 20 53/55 20
G(PF)1 1/4-E-32 23-32 41.91 20 53/55

20





How to choose the correct thread ?

1.First confirm the hole diameter of the mounting panel hole and chenck if it is a tapping hole.
2.Find the matching thread international standard according to the technical parameter table (Metric,PG,NPT,G) .
3.If there is no tapping hole on the mounting panel ,you can choose any type of thread .
4.Long thread type of cable gland is required by the thickness of mounting panel .



Instructions photo



FAQ

1.Question: Are they UL listed?
Answer: We have finished UL listed and raw material UL (尼龙PA66制成防火等级UL94V-2) approved .You can choose the one you want according to your requirement .
2.Question: How long is the working life of cable gland?
Answer:More than 10 years under normal environment.
3.Question: when is the lead time?
Answer: Standard goods can be shipped out within 3-7 businessdays.
4.Question: Can be accept OEM cable gland & packing?
Answer: Yes,OEM,ODM  can be accepted .
