Technical Parameters

Name
Nylon blind cap
Thread
Metric,PG
Protection degree
IP56 ,can be upto IP68 while uesing with O-ring or gasket .
Working temperature
-40℃ to 100℃, instantaneous heat resistance up to 120 ℃. -20℃ to 80 ℃ in dynamic, instantaneous heat resistance up to 100℃.
Materials
Nylon
Color
Black ,white and ligh grey ,other colors can be customized .

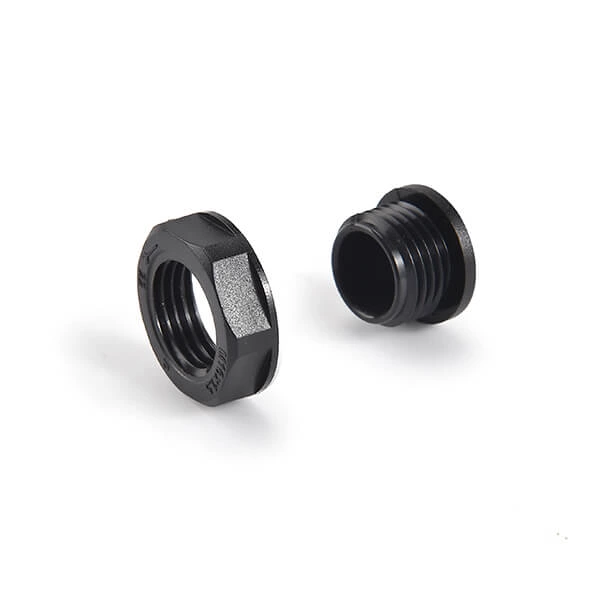

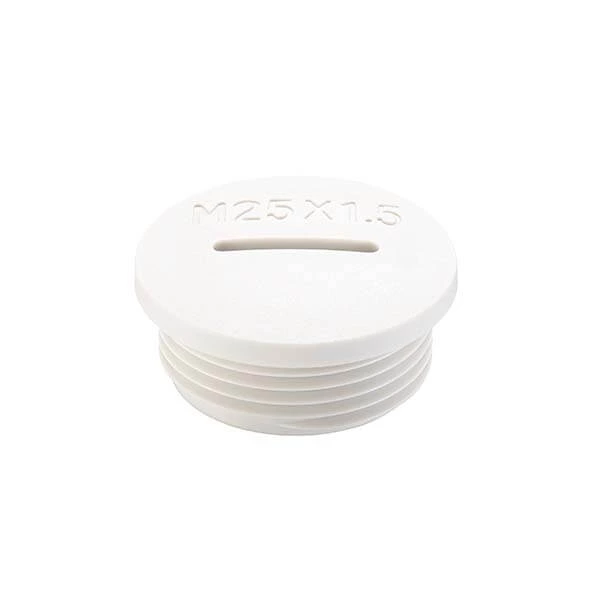

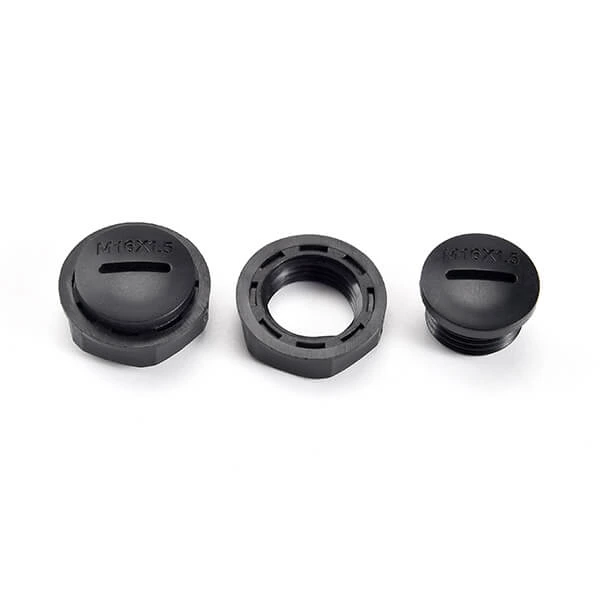

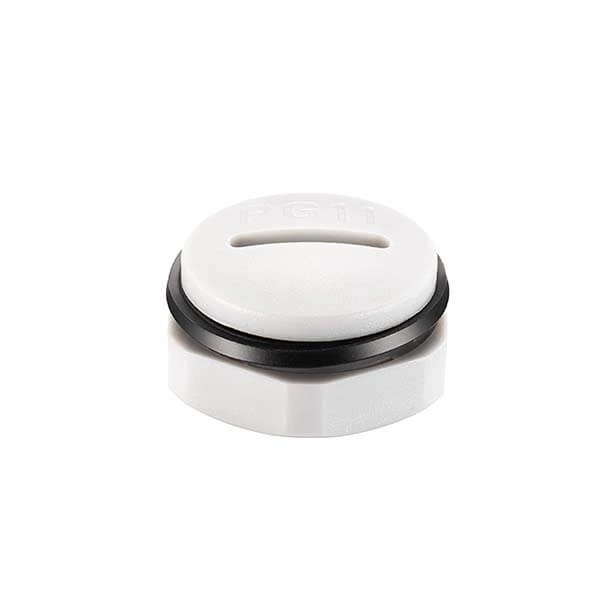

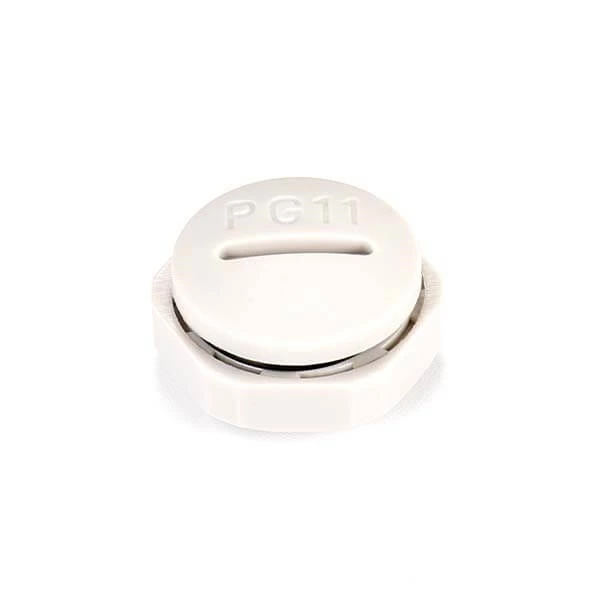

Nylon Screw Plug
Nylon Screw Plug Nylon Screw Plug Nylon Screw Plug Nylon Screw Plug Nylon Screw Plug Nylon Screw Plug Nylon Screw Plug

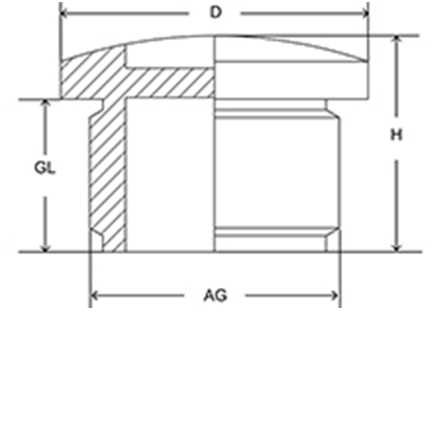

Decomposition Diagrams

Technical Data sheet

Nylon Screw Plug
PG
Part No. Thread Thread O.D
AG(mm)
Thread Length
GL(mm)
Plug O.D
D(mm)
Std.pkg
(pcs/bag)
PJ-PG7-C PG7 12.5 9.5 16.5 50
PJ-PG9-C PG9 15.2 9.5 19.2 50
PJ-PG11-C PG11 18.6 10 22.6 50
PJ-PG13.5-C PG13.5 20.4 11 24.4 50
PJ-PG16-C PG16 22.5 11 26.5 50
PJ-PG21-C PG21 28.3 11 32.3 50
PJ-PG29-C PG29 37 12 33 50
PJ-PG36-C PG36 47 12 53 50
PJ-PG42-C PG42 54 12 60 50
PJ-PG48-C PG48 59.3 12 65.3 50
Metric
Part No. Thread Thread O.D
AG(mm)
Thread Length
GL(mm)
Plug O.D
D(mm)
Std.pkg
(pcs/bag)
PJ-M10-C M10*1.5 10 9.5 16 50
PJ-M12-C M12*1.5 12 9.5 16 50
PJ-M16-C M16*1.5 16 10 20 50
PJ-M18-C M18*1.5 18 11 22 50
PJ-M20-C M20*1.5 20 11 24 50
PJ-M22-C M22*1.5 22 11 26 50
PJ-M25-C M25*1.5 25 11 29 50
PJ-M27-C M27*1.5 27 11 33 50
PJ-M32-C M32*1.5 32 11 38 50
PJ-M40-C M40*1.5 40 12 46 50
PJ-M50-C M50*1.5 50 12 56 50
PJ-M63-C M63*1.5 63 12 69 50
