8 strings 8 in 1 out dc1000V 120A ip65 solar pv combiner box

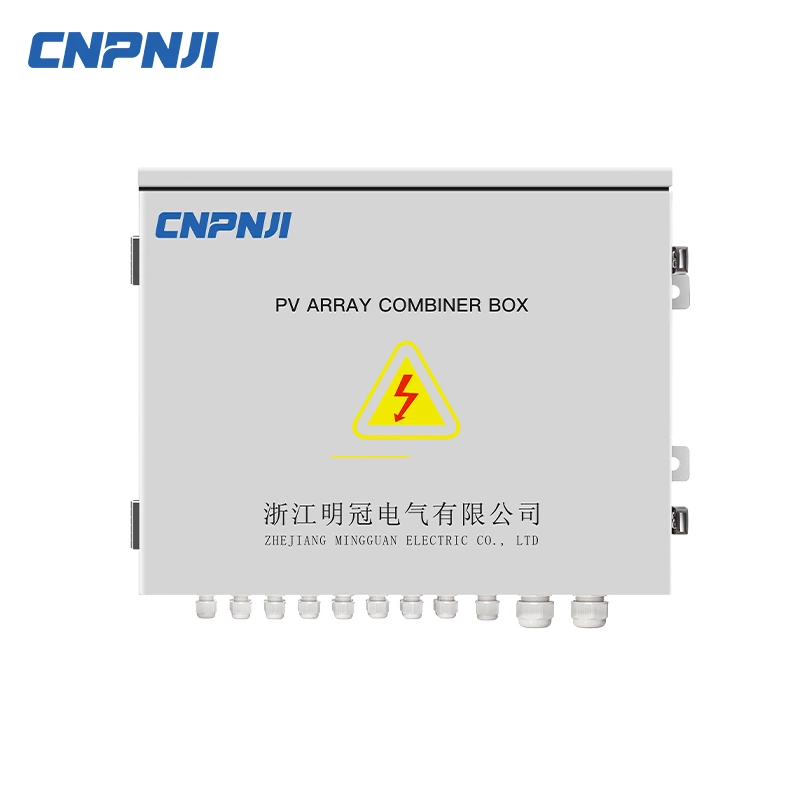

8 strings solar pv combiner box Adopting hot-dip galvanized steel plate, the cabinet structure is safe and reliable, with sufficient mechanical strength to ensure that there is no shaking or deformation during component installation and operation; The protection level is IP65, which is waterproof, ash proof, rust proof, and salt spray proof, meeting the requirements for outdoor installation. It can be connected to 8-way photovoltaic arrays simultaneously.
Advantages of photovoltaic combiner box:
1. The photovoltaic combiner box improves the safety of solar panels and the entire photovoltaic power plant.

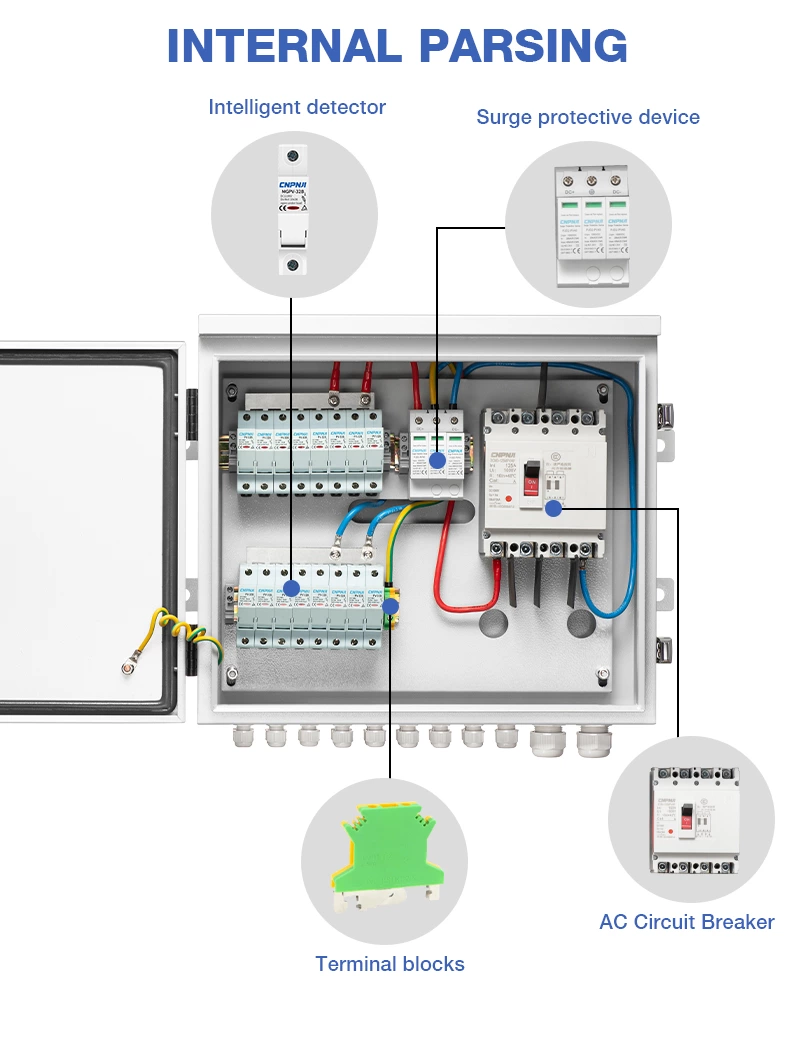

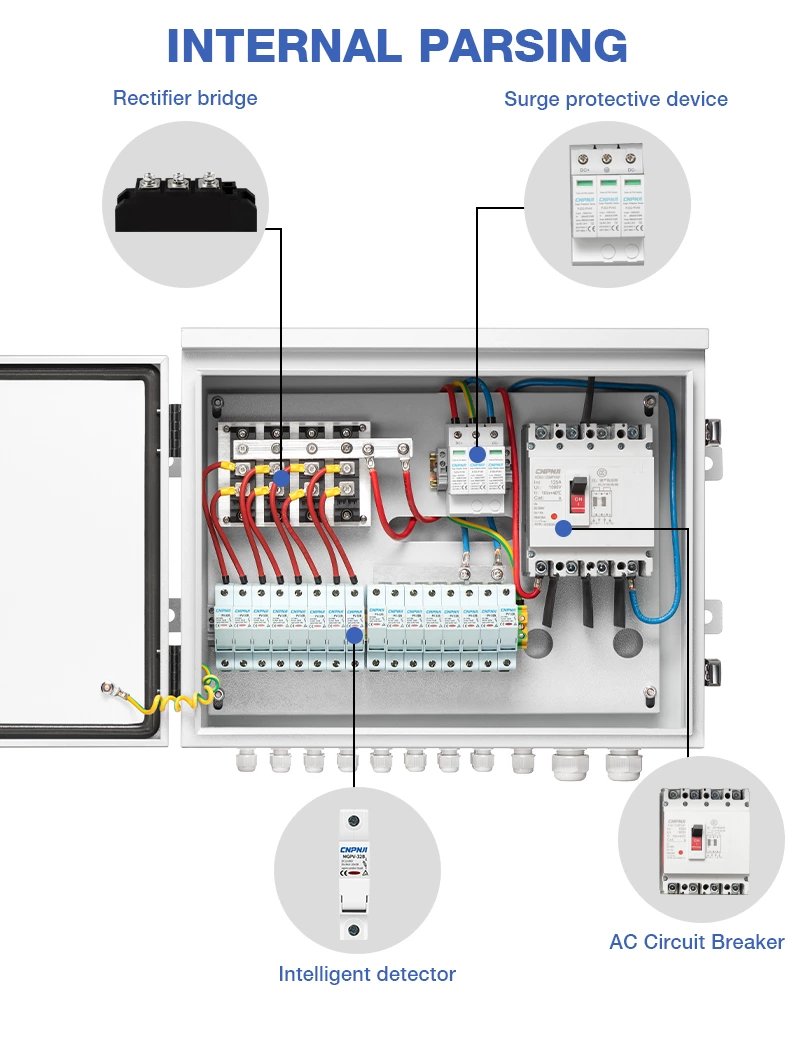

2. Photovoltaic combiner box, also known as DC distribution board, as a plug and play solution, is factory assembled with monitoring equipment, fuses, surge protection devices, and isolation switches.
3. Different shell sizes can flexibly cover a range of up to 32 strings.
|System DC voltage||
|Each input current||
|Number of input channels||
|Maximum output switching current||
|Test category||II pole protection||II pole protection|
|Nominal discharge current||
|Maximum discharge current||
|Voltage protection level||
|Maximum continuous operating voltage||
|number of poles||
|Structural characteristics||Pluggable module||Pluggable module|
|Output switch||DC circuit breaker (standard)/DC rotary isolation switch (optional)||DC circuit breaker (standard)/DC rotary isolation switch (optional)|
|Photovoltaic DC fuse||Standard configuration||Standard configuration|
|Photovoltaic DC surge protection||Standard configuration||Standard configuration|
|Anti reflection diode||×||√|
|Heat dissipation plate||×||√|
|Box material||Cold rolled steel spray molding||Cold rolled steel spray molding|
|Installation method||Wall mounted||Wall mounted|
|Altitude||2000 meters||2000 meters|
|Permissible relative humidity||0-95%, no condensation||0-95%, no condensation|
Characteristics of photovoltaic combiner box:
1. Factory assembled combiner box solution, suitable for all residential, commercial, and utility scale applications, using single or up to 32 strings of 1000V and 1500VDC; Monitoring is optional.
2. The combiner box adopts Gemini thermoplastic outdoor box, which has excellent mechanical strength.
3. Due to its mechanical properties, it can prevent dust, sea or strong water columns, chemicals, and strong ultraviolet rays: IP66, IK10, and GWT 750 ° C.
4. Electrical characteristics: Double insulation (Class II), Ui/Ue: 1000V DC/1500V DC.
5. According to on-site conditions, the Gemini casing can be installed in a floor or wall mounted manner.
