Multiple-Hole Nylon Cable Gland

Technical Parameters

Thread
Metric,PG,G(PF) and NPT
Protection degree
IP68-10
Working temperature
-40℃ to 100℃, instantaneous heat resistance up to 120 ℃. -20℃ to 80 ℃ in dynamic, instantaneous heat resistance up to 100℃.
Features
This product is designed for outlet hole type. This function can integrate multiple cable wires into one outlet hole at the same time, which can not only greatly reduce the construction time, reduce the cost, but also reduce the space occupied by the outlet
Materials
UL approved Nylon PA66(Flammability UL94V-2)for A,C,E,F parts,UL 94V-0 nylon PA66 material can be customized;EPDM for B,D parts,can customize other rubber.

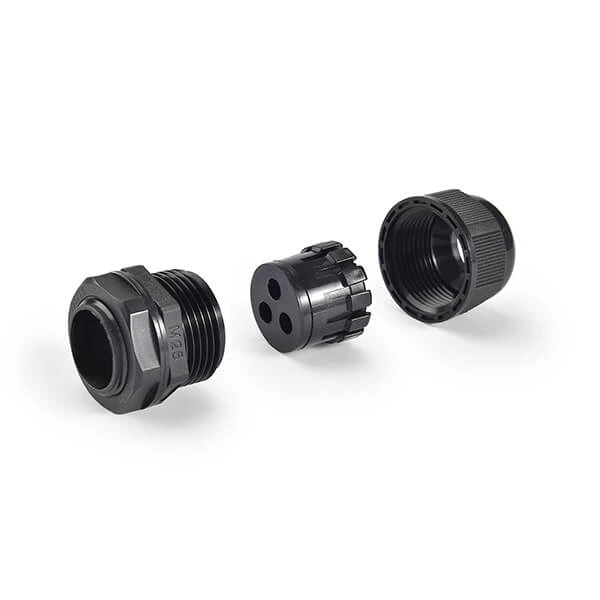

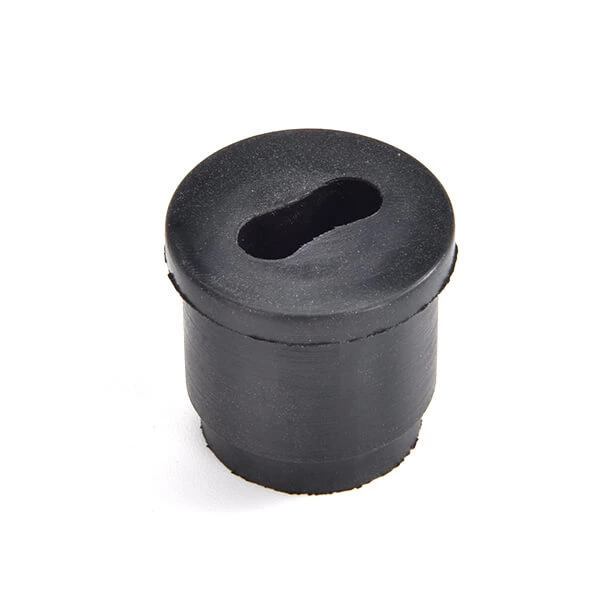

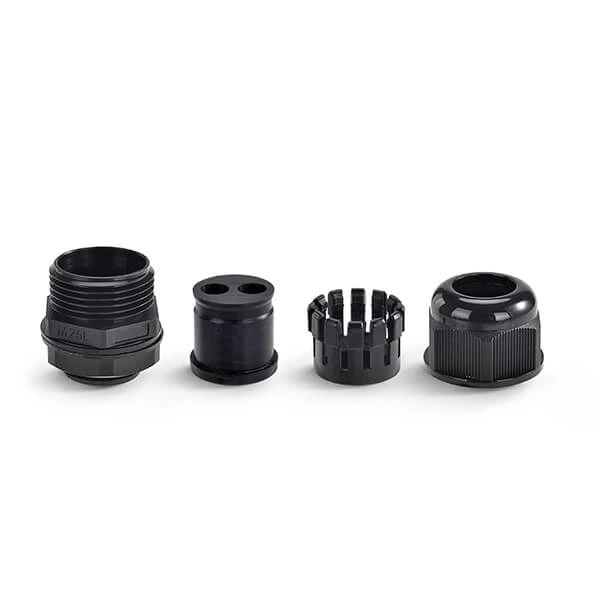

Multiple-Hole Nylon Cable Gland
Multiple-Hole Nylon Cable Gland Multiple-Hole Nylon Cable Gland Multiple-Hole Nylon Cable Gland Multiple-Hole Nylon Cable Gland Multiple-Hole Nylon Cable Gland

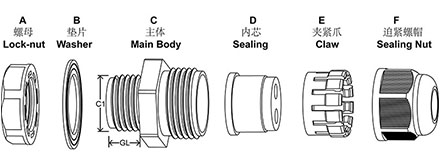

Decomposition Diagrams

Technical Data sheet

Multi-hole &Falt-hole Cable Gland (Divided Body)
Metric / PG / G / NPT
Model Part No. Cable Range
φ(mm)
Thread O.D
C1(mm)
Thread Length
GL(mm)
Spanner Size
A/F(mm)
Std.pkg
(pcs/bag)

MGA12-H2-03 1.2-3 12 8 18/19 50
MGA16-H2-04 1.5-4 16 15 22/22 50
MGA20-H2-06 3-6 20 15 27/27 50
MGA25-H2-6.5 3-6.5 25 15 33/33 50
MGA25-H2-08 4-8 25 15 33/33 50
MGA25-H2-09 5-9 25 15 33/33 50
MGA32-H2-10 6-10 32 15 41/41 20
MGA32-H2-11.5 7.5-11.5 32 15 41/41 20
MGA40-H2-13 7-13 40 20 50/50 10
MGA63-H2-17 12-17 63 25 75/75 10
PGA7-H2-03 1.2-3 12.5 8.5 17/19 50
PGA9-H2-03 1.2-3 15.2 8.5 22/19 50
PGA11-H2-04 1.5-4 18.6 10 24/22 50
PG13.5-H2-05 2.5-5 20.4 10 27/24 50
PGA16-H2-06 3-6 22.5 10.8 30/27 50
PGA21-H2-6.5 3-6.5 28.3 12 36/33 50
PGA21-H2-08 4-8 28.3 12 36/33 50
PGA21-H2-08 5-9 28.3 12 36/33 50
PGA29-H2-10 6-10 37 12 46/41 20
PGA29-H2-11.5 7.5-11.5 37 12 46/41 20
PGA36-H2-13 7-13 47 14 57/52 10
PGA48-H2-17 12-17 59.3 18.2 70/75 10
Model Part No. Cable Range
φ(mm)
Thread O.D
C1(mm)
Thread Length
C2(mm)
Spanner Size
A/F(mm)
Std.pkg
(pcs/bag)
MGA12-H3-2.6 1-2.6 12 8.5 18/19 50
MGA16-H3-04 1.5-4 16 15 22/22 50
MGA20S-H3-05 2-5 20 10 24/24 50
MGA20-H3-05 2-5 20 15 27/27 50
MGA22-H3-05 2-5 22 10 27/27 50
MGA25-H3-05 2-5 25 15 33/33 50
MGA25-H3-08 4-8 25 15 33/33 50
MGA32-H3-10 6-10 32 15 41/42 20
MGA40-H3-11 7-11 40 20 50/52 10
MGA50-H3-12 7-12 50 22 62/62 10
MGA63-H3-13 8-13 63 25 75/75 10
PGA7-H3-2.6 1-2.6 12.5 8.5 17/19 50
PGA9-H3-2.6 1-2.6 15.2 8.5 22/19 50
PGA11-H3-04 1.5-4 18.6 10 24/22 50
PGA13.5-H3-05 2-5 20.4 10 27/24 50
PGA16-H3-05 2-5 22.5 10.8 30/27 50
PGA21-H3-05 2-5 28.3 12 36/33 50
PGA21-H3-08 4-8 28.3 12 36/33 50
PGA29-H3-10 6-10 37 12 46/41 20
PGA36-H3-11 7-11 47 14 57/52 10
PGA42-H3-12 7-12 54 15 64/62 10
PGA48-H3-13 8-13 59.3 18 70/65 10
Model Part No. Cable Range
φ(mm)
Thread O.D
C1(mm)
Thread Length
C2(mm)
Spanner Size
A/F(mm)
Std.pkg
(pcs/bag)

MGA12-H4-2.3 1-2.3 12 8.5 18/19 50
MGA16-H4-3.2 1-3.2 16 15 22/22 50
MGA20S-H4-04 1.5-4 20 10 24/24 50
MGA20-H4-2.5 1-2.5 20 15 27/27 50
MGA20-H4-3.5 1-3.5 20 15 27/27 50
MGA20-H4-4.5 2-4.5 20 15 27/27 50
MGA22-H4-2.5 1-2.5 22 15 27/27 50
MGA22-H4-3.5 1-3.5 22 15 27/27 50
MGA22-H4-4.5 2-4.5 22 15 27/27 50
MGA25-H4-05 2-5 25 15 33/33 50
MGA25-H4-06 3-6 25 15 33/33 50
MGA25-H4-07 3-7 25 15 33/33 50
MGA25-H4-08 4-8 25 15 33/33 50
MGA25-H4-09 5-9 25 15 33/33 50
MGA32-H4-07 3-7 32 15 41/42 20
MGA32-H4-09 5-9 32 15 41/42 20
MGA40-H4-11 7-11 40 20 50/52 10
MGA40-H4-12 8-12 40 20 50/52 10
PGA7-H4-2.3 1-2.3 12.5 8.5 17/19 50
PGA9-H4-2.3 1-2.3 15.2 8.5 22/19 50
PGA11-H4-3.2 1-3.2 18.6 10 24/22 50
PGA13.5-H4-04 1.5-4 20.4 10 27/24 50
PGA16-H4-2.5 1-2.5 22.5 10.8 30/27 50
PGA16-H4-3.5 1-3.5 22.5 10.8 30/27 50
PGA16-H4-4.5 2-4.5 22.5 10.8 30/27 50
PGA21-H4-05 2-5 28.3 12 36/33 50
PGA21-H4-06 3-6 28.3 12 36/33 50
PGA21-H4-07 3-7 28.3 12 36/33 50
PGA21-H4-08 4-8 28.3 12 36/33 50
PGA21-H4-09 5-9 28.3 12 36/33 50
PGA29-H4-07 3-7 37 12 46/41 20
PGA29-H4-09 5-9 37 12 46/41 20
PGA36-H4-11 7-11 47 14 57/52 10
PGA36-H4-12 8-12 47 14 57/52 10
Model Part No. Cable Range
φ(mm)
Thread O.D
C1(mm)
Thread Length
C2(mm)
Spanner Size
A/F(mm)
Std.pkg
(pcs/bag)

MGA20-H5-03 1-3 20 15 27/27 50
MGA22-H5-03 1-3 22 10 27/27 50
MGA25-H5-06 3-6 25 15 33/33 50
MGA32-H5-08 4-8 32 15 41/42 20
PGA16-H5-03 1-3 22.5 11 30/27 50
PGA21-H5-06 3-6 28.3 12 36/33 50
PGA29-H5-08 4-8 37 12 46/41 20
Model Part No. Cable Range
φ(mm)
Thread O.D
C1(mm)
Thread Length
C2(mm)
Spanner Size
A/F(mm)
Std.pkg
(pcs/bag)

MGA32A-H6-5.5 2-5.5 32 15 41/42 20
MGA32A-H6-07 3-7 32 15 41/42 20
MGA63A-H6-12 8-12 63 25 75/75 10
PGA11-H6-2.1 1-2.1 18.6 10 24/22 50
PGA21-H6-5.3 2-5.3 28.3 12 36/33 50
PGA29-H6-5.5 2-5.5 37 12 46/41 20
PGA29-H6-07 3-7 37 12 46/41 20
PGA48-H6-12 8-12 59.3 18 70/65 10
Model Part No. Cable Range
φ(mm)
Thread O.D
C1(mm)
Thread Length
C2(mm)
Spanner Size
A/F(mm)
Std.pkg
(pcs/bag)

PGA21-H7-4.3 2-4.3 28.3 12 36/33 50
Model Part No. Cable Range
φ(mm)
Thread O.D
C1(mm)
Thread Length
C2(mm)
Spanner Size
A/F(mm)
Std.pkg
(pcs/bag)
PGA21-H8-04 1.5-4 28.3 12 36/33 50
Model Part No. Cable Range
φ(mm)
Thread O.D
C1(mm)
Thread Length
C2(mm)
Spanner Size
A/F(mm)
Std.pkg
(pcs/bag)

MGA10-0306 03*06 10 8 15/13 50
MGA25-0614 06*14 25 15 33/33 50
MGA32-0519 05*19 32 15 41/42 20



How to choose the correct thread ?

1.First confirm the hole diameter of the mounting panel hole and chenck if it is a tapping hole.
2.Find the matching thread international standard according to the technical parameter table (Metric,PG,NPT,G) .
3.If there is no tapping hole on the mounting panel ,you can choose any type of thread .
4.Long thread type of cable gland is required by the thickness of mounting panel .



Instructions photo



FAQ

1.Question: Are they UL listed?
Answer: We have finished UL listed and raw material UL approved .You can choose the one you want according to your requirement .
2.Question: How long is the working life of cable gland?
Answer:More than 10 years under normal environment.
3.Question: when is the lead time?
Answer: Standard goods can be shipped out within 3-7 business days.
4.Question: Can be accept OEM cable gland & packing?
Answer: Yes,OEM,ODM  can be accepted .
