Metal Thread Adapter

Technical Parameters

Name
Metal thread reducer
Thread
Metric,PG,G(PF) and NPT
Operating temperature
Static:-40℃~+100℃ Short time up to +120℃;
Dynamic:-20℃~+80℃ Short time up to +100℃
Features
It is used for thread conversion to avoid inconvenience caused by thread diameter mismatch of mounting hole.
Materials
Made of high quality brass nickel plated or chrome

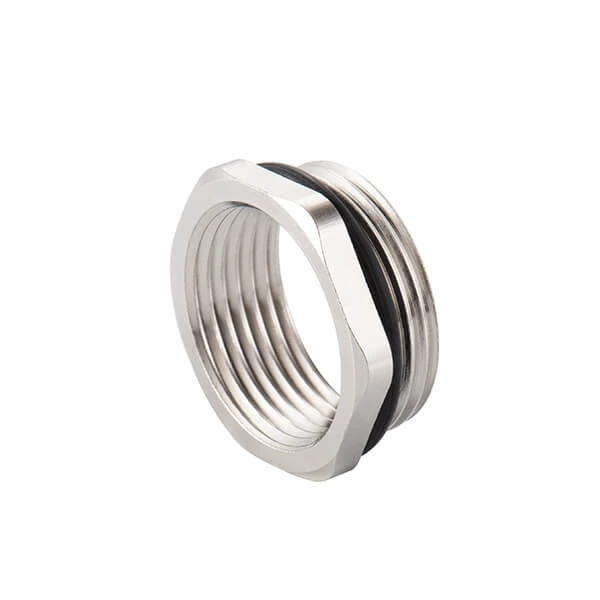

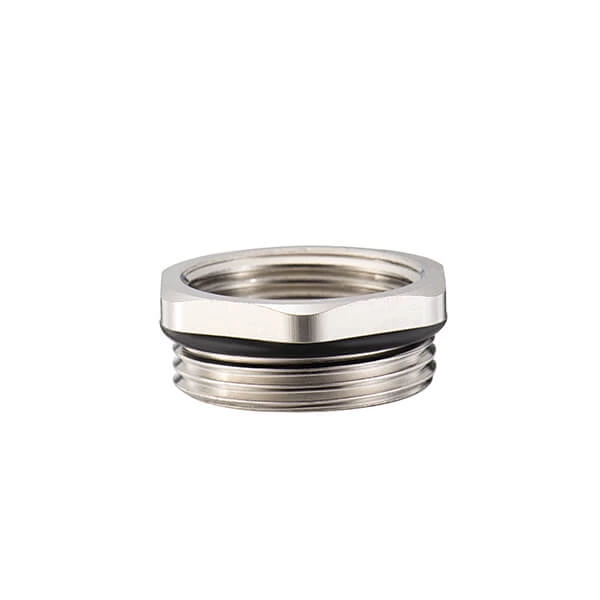

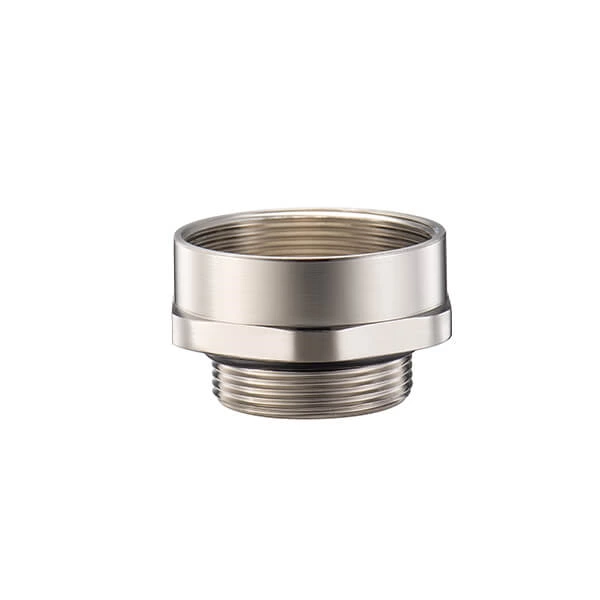

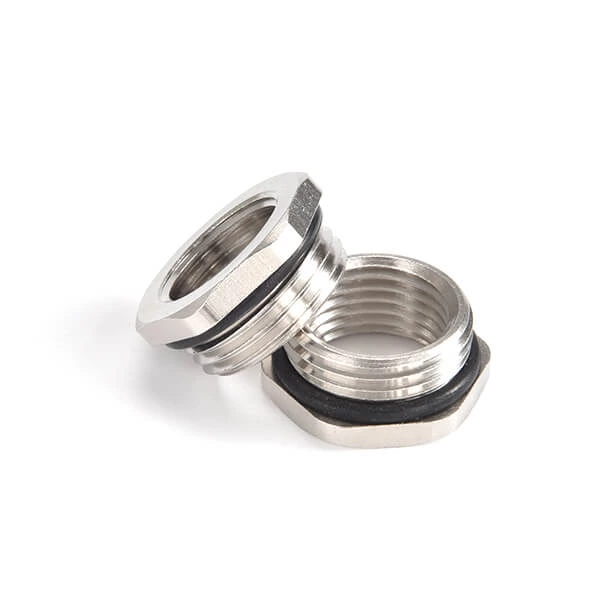

Metal Thread Adapter
Metal Thread Adapter Metal Thread Adapter Metal Thread Adapter Metal Thread Adapter Metal Thread Adapter

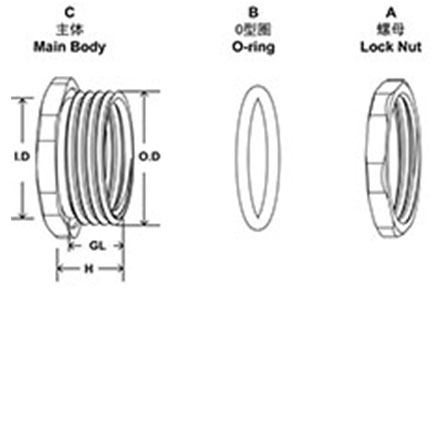

Decomposition Diagrams

Technical Data sheet

Metal Enlarger
Metric
Hexagon O.D.(mm) I.D.(mm) Thread Length
GL(mm)
Height
H(mm)
Spanner Size
A(mm)
M12/M16C M16*1.5 M12*1.5 6 10.5 18
M16/M20C M20*1.5 M16*1.5 6.5 10.5 24
M20/M25C M25*1.5 M20*1.5 7.5 11.5 30
M25/M32C M32*1.5 M25*1.5 8 12 39
M32/M40C M40*1.5 M32*1.5 9 13 43
M40/M50C M50*1.5 M40*1.5 10 16 57
M50/M63C M63*1.5 M50*1.5 10 17 64
PG
Hexagon O.D.(mm) I.D.(mm) Thread Length
GL(mm)
Height
H(mm)
Spanner Size
A(mm)
PG7/PG9C PG9 PG7 6 10.5 17
PG9/PG11C PG11 PG9 6.5 10.5 20
PG11/PG13.5C PG13.5 PG11 6.5 10.5 22
PG13.5/PG16C PG16 PG13.5 6.5 11 24
PG16/PG21C PG21 PG16 7.5 11 30
PA21/PG29C PG29 PG21 8 11 39
PG29H/PG36C PG36 PG29 9 13 50
PG36/PG42C PG42 PG36 10 15 57
PG42/PG48C PG48 PG42 10 16 64
G
Hexagon O.D.(mm) I.D.(mm) Thread Length
GL(mm)
Height
H(mm)
Spanner Size
A(mm)
G1/2-G3/8C G3/8 G1/2  6 10.5 24
G1/2-G3/4C G3/4 G1/2  7.5 10.5 30
G3/4-G1C G1 G3/4 7.5 13 40
G1-G1 1/4C G1 1/4 G1 8 13 50

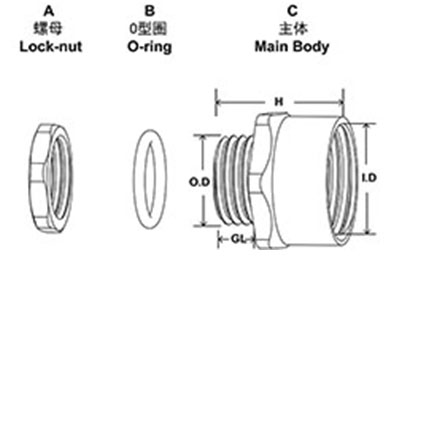

Decomposition Diagrams

Technical Data sheet

Metal Reducer
Metric
Hexagon O.D.(mm) I.D.(mm) Thread Length
GL(mm)
Height
H(mm)
Spanner Size
A(mm)
M12/M16H M12*1.5 M16*1.5 6 9 18
M16/M20H M16*1.5 M20*1.5 6.5 9.5 24
M20/M25H M20*1.5 M25*1.5 7.5 10.5 30
M25/M32H M25*1.5 M32*1.5 8 11.5 39
M32/M40H M32*1.5 M40*1.5 9 12.5 43
M40/M50H M40*1.5 M50*1.5 10 14 57
M50/M63H M50*1.5 M63*1.5 10 14 64
PG
Hexagon O.D.(mm) I.D.(mm) Thread Length
GL(mm)
Height
H(mm)
Spanner Size
A(mm)
PG7/PG9H PG7 PG9 6 9 17
PG9/PG11H PG9 PG11 6.5 9.5 20
PG11/PG13.5H PG11 PG13.5 6.5 9.5 22
PG13.5/PG16H PG13.5 PG16 6.5 9.5 24
PG16/PG21H PG16 PG21 7.5 10 30
PA21/PG29H PG21 PG29 8 11.5 39
PG29H/PG36H PG29 PG36 9 12.5 50
PG36/PG42H PG36 PG42 10 14 57
PG42/PG48H PG42 PG48 10 14 64
G
Hexagon O.D.(mm) I.D.(mm) Thread Length
GL(mm)
Height
H(mm)
Spanner Size
A(mm)
G1/2-G3/8H G1/2  G3/8 6 10.5 24
G1/2-G3/4H G1/2  G3/4 7.5 10.5 30
G3/4-G1H G3/4 G1 7.5 10.5 40
G1-G1-1/4H G1 G1 1/4 8 10.5 50
,

,

,

,

,

,

Comparation : A (Claw half through type ) & B (Claw straight through type)

1.Installation time: A type needs 10-15s,B type needs 5-10s
2.Protection degree: IP68-10
3.Both A & B type are easier for installation .A type structure is the updated design based on the B type ,and easier installation and removal.

How to choose the correct thread

1.First confirm the hole diameter of panel hole and then advise if there is tapping hole on the mounting panel.
2.Choosing the correct thread international standard.(Metric,PG,NPT,G).
3.If there is no tapping hole on the mounting panel ,you can choose any type of thread.

FAQ

1.Question: Can customize long thread of metal cable gland ?
Answer: Yes. The shape and screw length of ordinary metal products can be customized after 3D & CAD drawings are provided without new molds (except for special appearance products).
2.Question:Does the signal lamp affect the magnetic field?
Answer:This product can also be used with armor wires to achieve the purpose of EMC anti-magnetic wave.
3.Question: when is the lead time?
Answer: Standard goods can be shipped out within 3-7 business days.Customized model based on the QTY.
