Metal Cable Gland
Application field: aerospace field, artificial intelligence robot
Application field: aerospace field, artificial intelligence robot

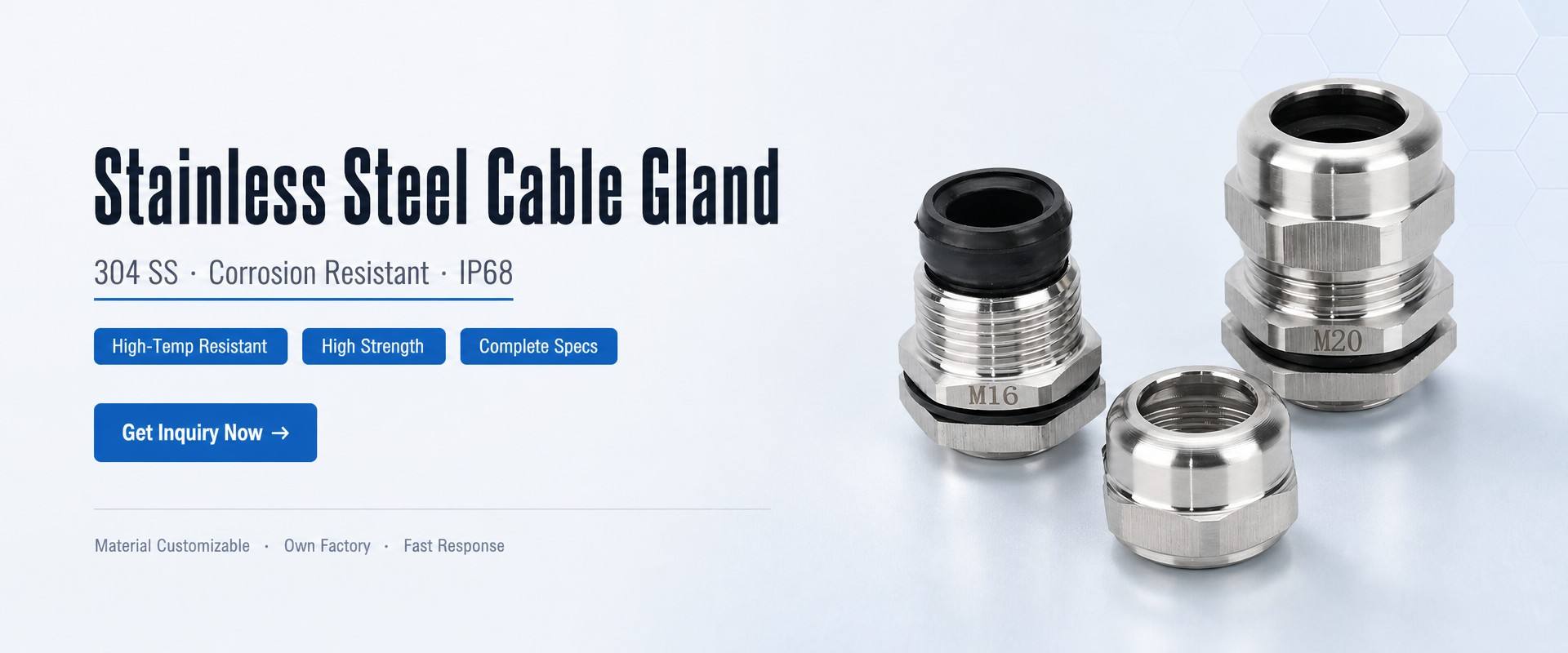

304 stainless steel cable gland is a heavy-duty metal cable sealing connector for industrial wiring. Made of 304 stainless steel, it delivers outstanding corrosion resistance, oxidation resistance and high mechanical strength. With built-in rubber sealing insert and washer, it achieves IP68 waterproof & dustproof rating, provides reliable cable clamping and pull relief.
Metric thread sizes are available for different cable diameters. Widely applied in chemical equipment, marine, outdoor cabinets, machinery and corrosive working environments. Easy installation, strong tensile resistance and long service life. Custom material like 316 stainless steel is supported on request.
| SKU | Thread Type | Spec |
|---|---|---|
| M12-AD10.0 | Metric | M12 to AD10.0 |
| M16-AD13.0 | Metric | M16 to AD13.0 |
| M20-AD15.8 | Metric | M20 to AD15.8 |
| M20-AD18.5 | Metric | M20 to AD18.5 |
| M20-AD21.2 | Metric | M20 to AD21.2 |
| M22-AD21.2 | Metric | M22 to AD21.2 |
| M25-AD21.2 | Metric | M25 to AD21.2 |
| M25-AD25.0 | Metric | M25 to AD25.0 |
| M25-AD28.5 | Metric | M25 to AD28.5 |
| M32-AD34.5 | Metric | M32 to AD34.5 |
| M40-AD42.5 | Metric | M40 to AD42.5 |
| M50-AD54.5 | Metric | M50 to AD54.5 |
| M63-AD54.5 | Metric | M63 to AD54.5 |
| G1/2-AD15.8 | G Thread | G1/2 to AD15.8 |
| G1/2-AD18.5 | G Thread | G1/2 to AD18.5 |
| G3/4-AD21.2 | G Thread | G3/4 to AD21.2 |
| G3/4-AD25.0 | G Thread | G3/4 to AD25.0 |
| G3/4-AD28.5 | G Thread | G3/4 to AD28.5 |
| G1-AD34.5 | G Thread | G1 to AD34.5 |
| NPT1/2-AD15.8 | NPT Thread | NPT1/2 to AD15.8 |
| NPT1/2-AD18.5 | NPT Thread | NPT1/2 to AD18.5 |
| NPT3/4-AD21.2 | NPT Thread | NPT3/4 to AD21.2 |
| NPT3/4-AD25.0 | NPT Thread | NPT3/4 to AD25.0 |
Q1: What is stainless steel cable gland used for? A: It is a metal cable entry fitting, used to fix and seal cables passing through enclosure panels, block water and dust ingress and protect cables from pulling damage.
Q2: What stainless steel grade is this gland? A: Standard version is 304 stainless steel. 316 stainless steel can be customized for stronger salt spray / marine corrosion resistance.
Q3: Waterproof rating? A: IP68, fully dust tight and protected against continuous immersion.
Q4: Does it have cable strain relief? A: Yes. The compression nut tightly grips the cable outer sheath to prevent cable pull-out.
Q5: What thread type? A: Metric thread, full M sizes in stock.
Q6: Is it suitable for marine / saltwater environment? A: 304 works for general coastal environment. For heavy salt spray, choose optional 316 stainless steel version.
Q7: Can you customize this product? A: Yes, custom logo, material and special thread specifications are available.
