Technical Parameters

Product Description

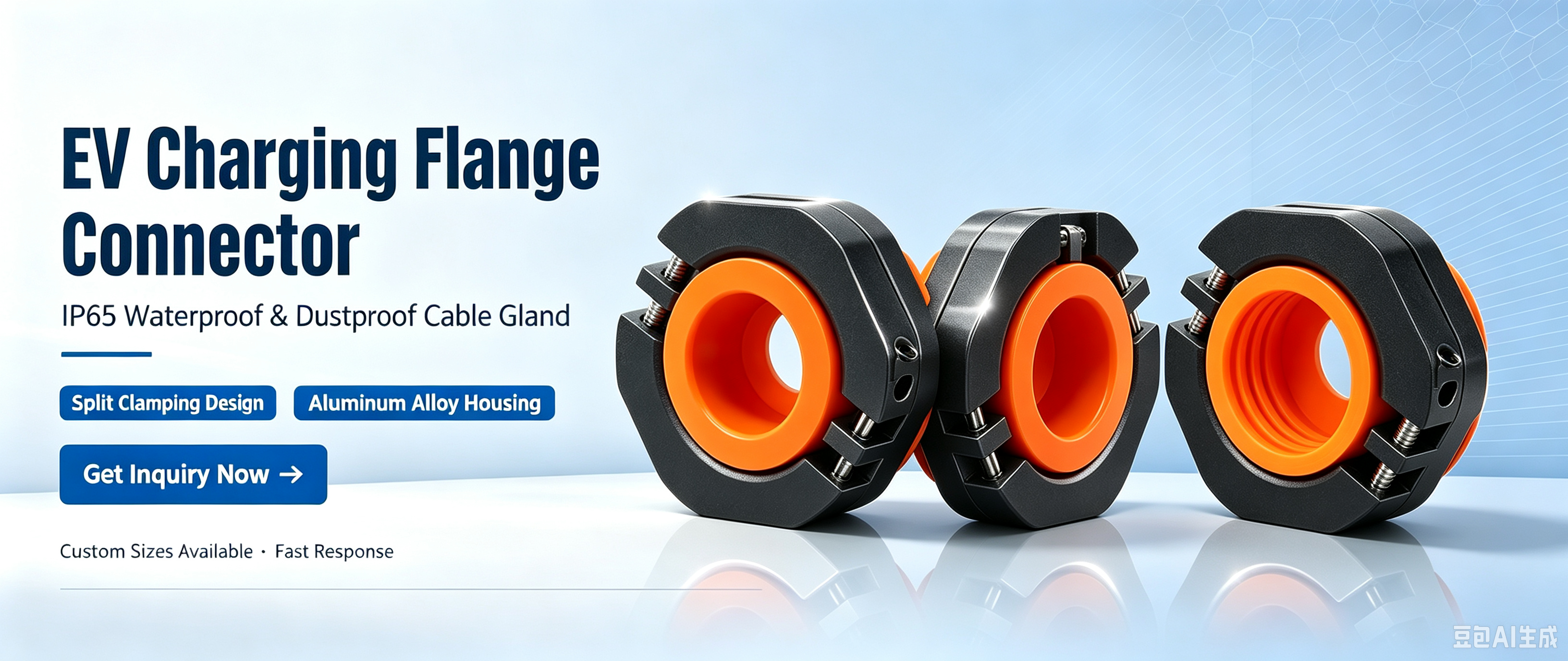

Engineered for outdoor EV charging pile and charging cabinet cable penetration scenarios, this EV Charging Flange Connector delivers reliable IP65‑rated sealing performance. Adopting split clamping flange design, it enables fast cable through‑wall mounting without thread tapping.

Robust alloy housing resists mechanical impact, aging and outdoor harsh weather. High‑performance silicone inner gasket provides dust‑tight and water‑tight protection for internal wiring. Widely deployed for new‑energy charging stations, charging cabinet enclosures and EV infrastructure projects. Supports multiple cable diameter ranges, ready for bulk wholesale and customized OEM requirements.

Key Features

• IP65 Waterproof & Dustproof Rating: Provides stable sealing against rain, dust and moisture for outdoor charging equipment.
• Split Clamping Flange Structure: Thread‑free two‑piece clamp‑on design, quick installation without tapping cabinet threads.
• Heavy‑Duty Durable Housing: High‑strength alloy construction, anti‑impact, anti‑aging for long‑term outdoor service life.
• Integrated Silicone Sealing Insert: Reliable hermetic seal with multi‑point claw locking, holds cables firmly without scratching wire jacket.
• Wide Working Temperature Range: Works steadily from ‑40℃ to +150℃, adapts to severe hot‑cold outdoor environments.
• Optimized for EV Charging Infrastructure: Perfect cable feed‑through solution for EV charging piles, charging cabinets and new‑energy power cabinets.

FAQ

Q1: Does this EV charging flange connector require cabinet thread tapping for installation?

A1: No. It uses split‑claw clamping flange design. No thread tapping is needed on cabinet panel, just lock the bolts to complete installation.

Q2: What protection degree can this flange connector achieve?

A2: IP65 rating. It provides excellent waterproof and dustproof performance for outdoor EV charging cabinet cable penetration.

Q3: What is the operating temperature range for this product?

A3: Operating temperature ranges from ‑40℃ to +150℃, suitable for all‑weather outdoor new‑energy charging sites.

Q4: Can it be customized for different cable outer diameters?

A4: Yes. Different silicone inner inserts can be supplied to match various cable sizes. OEM & bulk order support is available.

Q5: What material is the sealing component made of?

A5: The sealing gasket is high‑quality silicone material, delivering stable hermetic sealing and good anti‑aging performance for long‑term outdoor usage.
