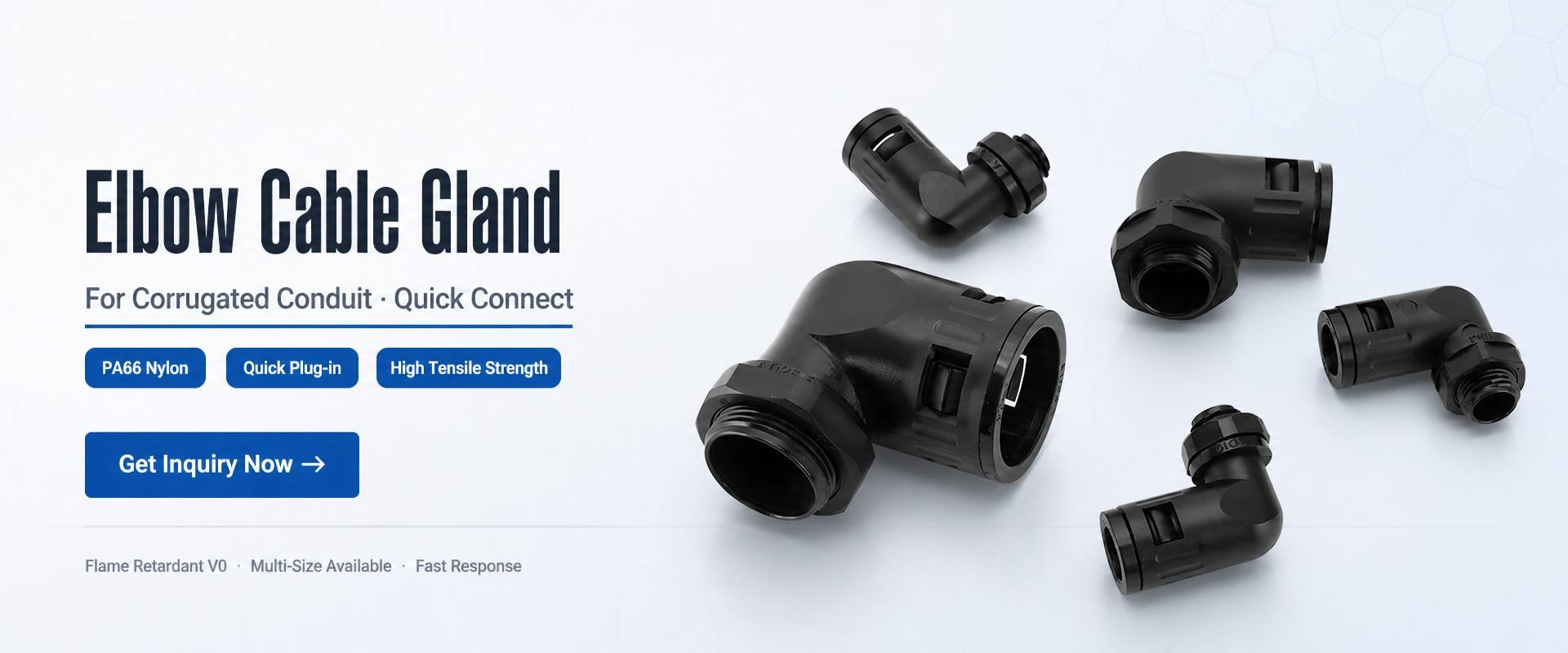

This 90° elbow corrugated conduit cable gland is manufactured from high-performance PA66 nylon material with flame retardant V0 grade. It adopts push-in quick connection design for corrugated tubes, greatly simplifying wiring installation. Featuring anti-loosening thread structure, it delivers reliable sealing, excellent tensile strength and wide temperature resistance. Available with Metric, PG and G thread types, multiple AD sizes to match different corrugated conduits. Widely used for machine, automation and equipment cable routing protection, ideal for limited-space wiring scenarios.
| SKU | Conduit AD Size | Thread Spec. |
|---|---|---|
| AD10-M12*1.5 | AD10 | M12×1.5 |
| AD13.0-M16*1.5 | AD13 | M16×1.5 |
| AD13.0-M18*1.5 | AD13 | M18×1.5 |
| AD13.0-M20*1.5 | AD13 | M20×1.5 |
| AD15.8-M16*1.5 | AD15.8 | M16×1.5 |
| AD15.8-M18*1.5 | AD15.8 | M18×1.5 |
| AD15.8-M20*1.5 | AD15.8 | M20×1.5 |
| AD18.5-M16*1.5 | AD18.5 | M16×1.5 |
| AD18.5-M18*1.5 | AD18.5 | M18×1.5 |
| AD18.5-M20*1.5 | AD18.5 | M20×1.5 |
| AD21.2-M20*1.5 | AD21.2 | M20×1.5 |
| AD21.2-M24*1.5 | AD21.2 | M24×1.5 |
| AD21.2-M25*1.5 | AD21.2 | M25×1.5 |
| AD25-M25*1.5 | AD25 | M25×1.5 |
| AD28.5-M25*1.5 | AD28.5 | M25×1.5 |
| AD28.5-M27*1.5 | AD28.5 | M27×1.5 |
| AD28.5-M30*1.5 | AD28.5 | M30×1.5 |
| AD34.5-M32*1.5 | AD34.5 | M32×1.5 |
| AD34.5-M36*1.5 | AD34.5 | M36×1.5 |
| AD34.5-M40*1.5 | AD34.5 | M40×1.5 |
| AD42.5-M40*1.5 | AD42.5 | M40×1.5 |
| AD42.5-M50*1.5 | AD42.5 | M50×1.5 |
| AD54.5-M50*1.5 | AD54.5 | M50×1.5 |
| AD54.5-M63*1.5 | AD54.5 | M63×1.5 |
| AD10-PG7 | AD10 | PG7 |
| AD13.0-PG9 | AD13 | PG9 |
| AD15.8-PG11 | AD15.8 | PG11 |
| AD18.5-PG13.5 | AD18.5 | PG13.5 |
| AD21.2-PG16 | AD21.2 | PG16 |
| AD28.5-PG21 | AD28.5 | PG21 |
| AD34.5-PG29 | AD34.5 | PG29 |
| AD42.5-PG36 | AD42.5 | PG36 |
| AD42.5-PG42 | AD42.5 | PG42 |
| AD54.5-PG48 | AD54.5 | PG48 |
| AD10-G1/4 | AD10 | G1/4 |
| AD15.8-G3/8 | AD15.8 | G3/8 |
| AD15.8-G1/2 | AD15.8 | G1/2 |
| AD21.2-G1/2 | AD21.2 | G1/2 |
| AD28.5-G3/4 | AD28.5 | G3/4 |
| AD34.5-G1 | AD34.5 | G1 |
| AD42.5-G1-1/4 | AD42.5 | G1-1/4 |
| AD42.5-G1-1/2 | AD42.5 | G1-1/2 |
| AD54.5-G2 | AD54.5 | G2 |
Q1: What is this elbow cable gland used for? A: It is a 90-degree elbow connector for corrugated plastic conduit. It connects corrugated tube to equipment cabinet while guiding and protecting cables, solving wiring corner transition in narrow installation space.
Q2: What material is this elbow cable gland? A: High quality PA66 nylon, UL94-V0 flame retardant grade, anti-aging, resistant to high & low temperature.
Q3: What thread types are available? A: Metric, PG and G thread types for selection, covers most standard cabinet hole requirements.
Q4: Is installation complicated? Do I need tools? A: No special tools needed. It adopts push-in quick connection, just push the corrugated conduit into the gland and tighten the thread nut for fixed installation.
Q5: What are the advantages of 90° elbow design? A: It changes cable routing direction smoothly, avoids sharp bending damage to cables, especially suitable for tight corners and limited installation space.
Q6: Is customization supported? A: Yes. Customization on color, packaging and special specifications is available.
Q7: Does it have anti-loosening function? A: Yes. The anti-loosening thread design effectively prevents loosening caused by vibration during equipment operation, maintaining stable connection.
