Spiral Nylon Cable Gland

Technical Parameters

Thread
Metric,PG,G(PF) and NPT
Protection degree
IP68-10
Working temperature
-40℃ to 100℃, instantaneous heat resistance up to 120 ℃. -20℃ to 80 ℃ in dynamic, instantaneous heat resistance up to 100℃.
Features
This product is designed with a spiral twist-resistant structure, which is mostly used in hand-controlled or mobile equipment to resist excessive twisting of wire outlets to reduce danger.The claw and seals of excellent design.Sealling nut have a "click"
Materials
UL approved Nylon PA66(Flammability UL94V-2)for A,C,E,F parts,UL 94V-0 nylon PA66 material can be customized;EPDM for B,D parts,can customize other rubber.
Spiral Nylon Cable Gland
Spiral Nylon Cable Gland Spiral Nylon Cable Gland Spiral Nylon Cable Gland Spiral Nylon Cable Gland Spiral Nylon Cable Gland

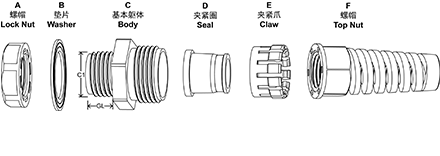

Decomposition Diagrams

Technical Data sheet

Flex Protecting Cable Gland (A Type Divided Body)
Metric
Thread Part No. Cable Range
φ(mm)
Thread O.D
C1(mm)
Thread Length
C2(mm)
Spanner Size
A/F(mm)
Std.pkg
(pcs/bag)
M12*1.5 M12A-P-5 2-5 12 8.5 18/19 50
M12A-P-7 4-7 12 8.5 18/19 50
M16*1.5 M16AS-P-8 4-8 16 10 22/19 50
M16ASL-P-8 4-8 16 15 22/19 50
M16A-P-7 4-7 16 10 22/22 50
M16A-P-10 6-10 16 10 22/22 50
M16AL-P-7 4-7 16 15 22/22 50
M16AL-P-10 6-10 16 15 22/22 50
M20*1.5 M20AS-P-9 5-9 20 10 27/24 50
M20AS-P-12 6-12.5 20 10 27/24 50
M20A-P-11 5-11 20 11 27/27 50
M20A-P-13.5 8-13.5 20 11 27/27 50
M20AL-P-11 5-11 20 15 27/27 50
M20AL-P-13.5 8-13.5 20 15 27/27 50
M22*1.5 M22AL-P-11 7-11 22 10 29/27 50
M22AL-P-14 9-14 22 10 29/27 50
M25*1.5 M25A-P-16 10-16 25 11.6 33/33 50
M25A-P-18 13-18 25 11.6 33/33 50
M25AL-P-16 10-16 25 15 33/33 50
M25AL-P-18 13-18 25 15 33/33 50
PG
Thread Part No. Cable Range
φ(mm)
Thread O.D
C1(mm)
Thread Length
C2(mm)
Spanner Size
A/F(mm)
Std.pkg
(pcs/bag)
PG7 PG7A-P-6 3-6 12.5 8 17/19 50
PG7A-P-8 4-7 12.5 8 17/19 50
PG9 PG9A-P-5.5 3-5.5 15.2 8.2 22/19 50
PG9A-P-7.5 4-7.5 16.2 8.2 22/19 50
PG11 PG11A-P-7 3-7 18.6 10 24/22 50
PG11A-P-10 6-10 18.6 10 24/22 50
PG13.5 PG13.5A-P-9 5-9 20.4 10 27/24 50
PG13.5A-P-12.5 6-12.5 20.4 10 27/24 50
PG16 PG16A-P-11 5-11 22.5 10.8 30/27 50
PG16A-P-14 8-14 22.5 10.8 30/27 50
PG21 PG21A-P-15.5 10-15.5 28.3 12 36/33 50
PG21A-P-17.5 13-18 28.3 12 36/33 50
G
Thread Part No. Cable Range
φ(mm)
Thread O.D
C1(mm)
Thread Length
C2(mm)
Spanner Size
A/F(mm)
Std.pkg
(pcs/bag)
G(PF)1/4" G1/4A-P-5 3-5.5 13.157 8.5 19/19 50
G1/4A-P-8 4-8 13.157 8.5 19/19 50
G(PF)3/8" G3/8A-P-7 3-7 16.7 10 22/22 50
G3/8A-P-10 6-10 16.7 10 22/22 50
G(PF)1/2" G1/2A-P-9 4-9 20.5 10 27/24 50
G1/2A-P-12.5 6-12.5 20.5 10 27/24 50
G(PF)3/4" G3/4A-P-16 10-16 26.4 12 36/33 50
G3/4A-P-18 13-18 26.4 12 36/33 50
(Nylon Elbow Flex Protecting Cable Gland)
Metric
Thread Part No. Cable Range
φ(mm)
Thread O.D
C1(mm)
Thread Length
GL(mm)
Spanner Size
A/F(mm)
Std.pkg
(pcs/bag)
M16*1.5 M16A-P-7 4-7 16 10 22/22 50
M16A-P-10 6-10 16 10 22/22 50
M20*1.5 M20A-P-11 5-11 20 15 27/27 50
M20A-P-13.5 8-13.5 20 15 27/27 50
M25*1.5 M25A-P-16 10-16 25 15 33/33 20
M25A-P-18 13-18 25 15 33/33 20

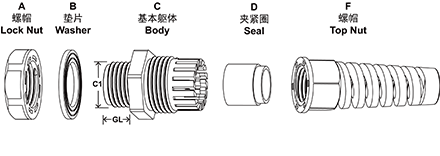

Decomposition Diagrams

Technical Data sheet

Flex Protecting Cable Gland (B Type United Body)
Metric
Thread Part No. Cable Range
φ(mm)
Thread O.D
C1(mm)
Thread Length
C2(mm)
Spanner Size
A/F(mm)
Std.pkg
(pcs/bag)
M12*1.5 M12S-P-6 3-6 12 8.5 18/15 50
M12SL-P-6 3-6 12 15 18/15 50
M12-P-5 2-5 12 8.5 18/19 50
M12-P-7 4-7 12 8.5 18/19 50
M12L-P-5 2-5 12 15 18/19 50
M12L-P-7 4-7 12 15 18/19 50
M16*1.5 M16S-P-8 4-8 16 10 22/19 50
M12SL-P-8 4-8 16 15 22/19 50
M16-P-7 4-7 16 10 22/22 50
M16-P-1 6-10 16 10 22/22 50
M16L-P-7 4-7 16 15 22/22 50
M16L-P-10 6-10 16 15 22/22 50
M18*1.5 M18-P-7 4-7 18 10 24/22 50
M18-P-10 6-10 18 10 24/22 50
M18L-P-7 4-7 18 15 24/22 50
M18L-P-10 6-10 18 15 24/22 50
M20*1.5 M20S-P-9 5-9 20 10 27/24 50
M20S-P-12 6-12.5 20 10 27/24 50
M20SL-P-9 5-9 20 15 27/24 50
M20SL-P-12 6-12.5 20 15 27/24 50
M20-P-11 5-11 20 11 27/27 50
M20-P-13.5 8-13.5 20 11 27/27 50
M20L-P-11 5-11 20 15 27/27 50
M20L-P-13.5 8-13.5 20 15 27/27 50
M25*1.5 M25S-P-11.5 5-11 25 11.6 33/27 50
M25S-P-13.5 8-13.5 25 11.6 33/27 50
M25-P-16 10-16 25 11.6 33/33 50
M25-P-18 13-18 25 11.6 33/33 50
M25L-P-16 10-16 25 15 33/33 50
M25L-P-18 13-18 25 15 33/33 50
(PG)
Thread Part No. Cable Range
φ(mm)
Thread O.D
C1(mm)
Thread Length
C2(mm)
Spanner Size
A/F(mm)
Std.pkg
(pcs/bag)
PG7 PG7S-P-6 3-6 12.5 8 17/15 50
PG7-P-5 3-5.5 12.5 8 17/19 50
PG7-P-7 4-7 12.5 8 17/19 50
PG9 PG9-P-5.5 3-5.5 15.2 8.2 22/19 50
PG9-P-7.5 4-7.5 16.2 8.2 22/19 50
PG11 PG11-P-7 3-7 18.6 10 24/22 50
PG11-P-10 6-10 18.6 10 24/22 50
PG11L-P-7 3-7 18.6 15 24/22 50
PG11L-P-10 6-10 18.6 15 24/22 50
PG13.5 PG13.5-P-9 5-9 20.4 10 27/24 50
PG13.5-P-12.5 6-12.5 20.4 10 27/24 50
PG16 PG16-P-11 5-11 22.5 10.8 30/27 50
PG16-P-14 8-14 22.5 10.8 30/27 50
PG19 PG19-P-11 5-11 24 10.8 30/27 50
PG19-P-14 8-14 24 10.8 30/27 50
PG21 PG21A-P-13 7-13 28.3 12 36/33 50
PG21A-P-17.5 13-18 28.3 12 36/33 50
(G)(NPT)
Thread Part No. Cable Range
φ(mm)
Thread O.D
C1(mm)
Thread Length
C2(mm)
Spanner Size
A/F(mm)
Std.pkg
(pcs/bag)
G(PF)3/8" G3/8-P-7 3-7 16.7 10 22/22 50
G3/8-P-10 6-10 16.7 10 22/22 50
G(PF)3/4" G3/4-P-13 7-13 26.4 12 33/27 50
G3/4-P-18 13-18 26.4 12 33/27 50
NPT1/2" NPT1/2-P-9 5-9 24 10 24 50
NPT1/2-P-13 7-13 24 10 24 50
NPT3/4" NPT3/4-P-16 8-16 26.5 15 33 50
NPT3/4-P-18 13-18 26.5 15 33 50
,

,

,

,

,

,

Comparation :A (Divided type ) & B(Uited type)

1.Installation time of conventional environment : A type needs 10-15s,B type needs 5-10s
2.Protection degree: IP68-10
3.A : Water resistance:100;Tensile resistance:101. It is suitable for applications with tensile strength of 50 meters water depth.
   B:  Water resistance:101;Tensile resistance:100. It is uitable for waterproof applications beyond 50 meters  water depth.
4.Both A & B type are easy to instal .A type structure is more widely uesd in  multiple- hole seal  and split seal cable gland in engineering projects.
