Instructions for using PH series junction boxes

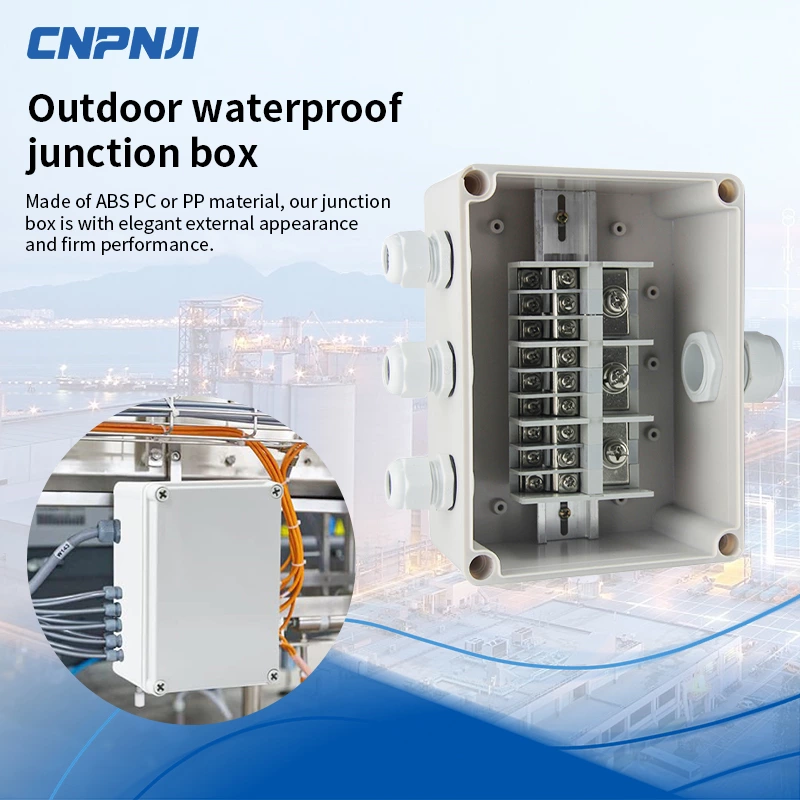

The PH series junction box is a product designed specifically for electrical wiring and circuit protection, widely used in residential, commercial, and industrial environments. The following are the general usage instructions for PH series junction boxes:

Preparation before unboxing

Verify if the product model and specifications meet your installation requirements.

Check if the junction box is damaged or missing parts.

Installation steps

1.Choose installation location:

Ensure that the selected location is convenient for wiring and complies with electrical safety regulations.

2. Install the junction box:

Use appropriate fasteners (such as screws or expansion bolts) to secure the junction box in the designated position.

Ensure that the junction box is level and securely installed.

3. Wiring preparation:

Turn off the power supply of the relevant circuit to ensure safe wiring operations.

Use appropriate tools (such as wire pliers, wire strippers) to prepare the wires.

4. Connect the wires:

Connect the wires to the wiring terminals inside the junction box according to the wiring instructions in the wiring diagram or product manual.

Ensure all connections are tight and comply with electrical specifications.

5. Inspection and testing:

Check if all wiring is correct and ensure that there are no exposed wires.

Restore power, perform functional testing, and check for any short circuits or poor contact.

6. Closing and sealing:

After confirming that the wiring is correct, cover and secure the junction box cover.

Ensure that all sealing measures are in place to prevent dust and moisture from entering.

Maintenance and Inspection

Regularly inspect the wiring and components inside the junction box for wear or damage.

Ensure good sealing of the junction box to prevent damage caused by external environmental factors.

Safety Tips

Always follow local electrical installation regulations and safety standards.

Before carrying out any wiring work, please ensure that the power supply has been cut off.

If unsure about the wiring method, please consult a professional electrician.

The PH series junction box provides a safe and reliable solution for your electrical connections, and proper installation and maintenance can ensure its long-term performance and safety.
